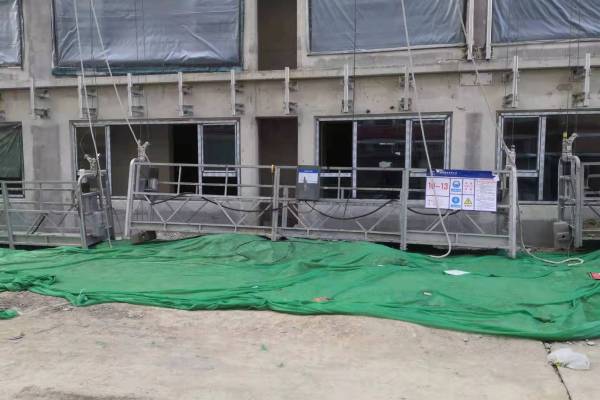

ZLP630 suspended work platform is one of our hot-sale products. Suspended platform known as electric cradle, is an aerial work platform lifting equipment which makes working at heights safer and more efficient.
ZLP630 suspended platform is widely used for construction and maintenance of high-rise building facade, window cleaning, exterior wall painting, curtain wall installation, and so on.
Electric cradle parts
- Working Platform
- Electric Control Box
- Safety Lock
- Electric Hoist
- Steel Wire Rope
- Electric Cable
- Upper Column
- Front Beam, Middle Beam, Rear Beam
- Front Support, Rear Support
- Balance Weight
ZLP630 suspended platform specification
| MODEL NUMBER | ZLP630 |
| Rated Capacity(kg) | 630 |
| Lifting Speed(m/min) | 9-11 |
| Rated Power(KW) | 1.5×2 |
| Hoist Model | LTD63 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform
L x W x H(mm) |
6000x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 800 |
| Steel Suspension Platform weight(kg) | 500 |
| Aluminum Suspension Platform weight(kg) | 340 |
Application of ZLP630 suspended work platform
- High-rise building window cleaning and installation
- Curtain wall installation
- Maintenance, decorating, painting of high building facades
- Building and repairing of large ships, bridge and chimney
How to choose the right types of suspended work platform
There are different types of suspended platform system available, such as various types of swing stages. When determining which type of suspended work platform to use for your project, you need to consider the following points:
- building height
- roof capacity
- the area available for setup
- location, type, and capacity of permanent roof anchors
- if there are no permanent roof anchors, what provisions are necessary to adequately anchor support cables and fall arrest systems
- whether or not there is a parapet wall
- electrical hazards
- the amount of overhang required for outrigger beams
If follow the advice above, you still can’t decide which type of electric swing stage scaffolding to choose, you need to ask professionals.
Suspended cradle manufacturer and exporter in China
Hebei Hengxiang Engineering Material Co., Ltd is one of leading suspended platform manufacturers and exporters in China. Our factory was established in 2008. We have a professional team to design and manufacture gondola lift . Products customization is available. Just send your design drawings and actual usage requirements, and our design team will talk with you.
In addition, our ZLP series suspended platforms have obtained ISO9001:2000 and CE certification. We can produce all the specifications of ZLP series suspended cradle, and also provide non-standard electric cradle customization according to customers’ need. The L shape suspended platform, bridge suspended scaffolding, circular suspended platform are also our popular products.
Our suspended cradles have been exported to many contries around the world, such as Russia, India, Spain, Italy, Chile, Ukraine, united Arab Emirates, Vietnam, Indonesia, South Afric, the Middle East, etc. Send your inquiry to us, we will reply to you as soon as possible, and provide you the latest factory price. Looking forward to our cooperation.
