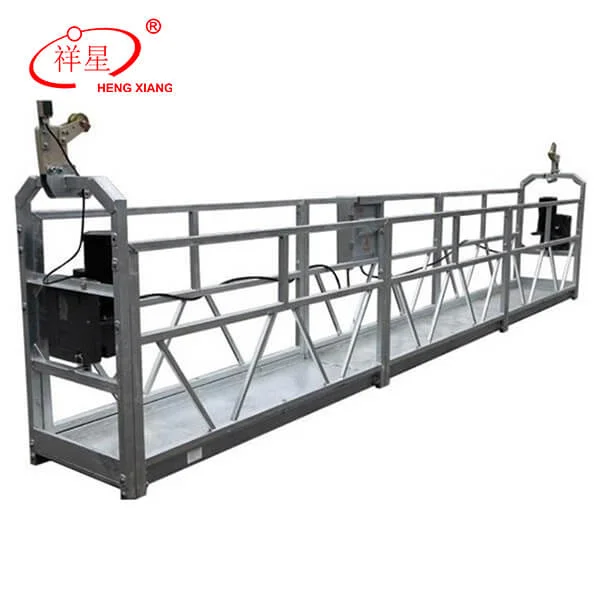

ZLP1000 temporary suspended platform is one of our popular models. The suspended platform, also known as construction gondola lift for building, is a type of ideal temporary lifting equipment to transport workers and their tools to the worksite at height. With the high quality suspended platform cradle, workers can work at heights safely and smoothly.
Our company can produce and supply various specifications of temporary suspended platforms, mainly including ZLP series(ZLP250/500/630/800/1000 model) suspended platform, and other non-standard suspended access cradles. Our special suspended platforms are including L shape suspended platform, suspended platform for chimney, and bridge suspended scaffolding platform, etc. The gondola lift for building produced by Hengxiang at a good price and with good quality.
Structure of suspended platform
- Steel or Aluminum Alloy (painted or hot galvanized) construction cradle/basket
- Steel (painted or hot galvanized) Suspension Mechanism/parapet clamp
- LTD series electric hoists
- Safety Lock: LSA30/LSA20
- Electric control box
- Steel wire rope
- Safety rope
- Counterweights: cement with steel cover & Iron counterweight
ZLP1000 temporary suspended platform specifications
| MODEL NUMBER | ZLP1000 |
| Rated Capacity(kg) | 1000 |
| Lifting Speed(m/min) | 8-10 |
| Rated Power(KW) | 2.2×2 |
| Hoist Model | LTD100 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform: L x W x H(mm) | 7500x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 1250 |
| Steel Suspension Platform weight(kg) | 700 |
| Aluminum Suspension Platform weight(kg) | 590 |
Product features
- Safety, obviously efficient, more flexible, and low-cost than the traditional scaffold.
- The length of working platform can be adjusted within 1m-30m.
- The working height can be adjusted with customers’ demand.
- The voltage can be adjusted.
- EAC, CE and ISO international certificates.
Applications of suspended platform
- Building facades/window glass cleaning, fixing, maintenance
- Building wall plastering
- High-rise building painting and decoration
- Aerial construction work
- Large-size Chimney, ship, bridge maintenance
- Soil working
- Curtain wall installation
After-sale services
- All products are warranted for two years.
- Additional consumables are given.
- Guarantees timely delivery
- Detailed installation of after-sales video.
- Strong technical team support.
About our company
Hebei Hengxiang Engineering Material Co., Ltd is one of the leading suspended work platform manufacturers in China. We also have a professional hanging platform design team to ensure the product’s quality and safety. Our gondolas are exported to many countries and regions around the world, including India, Russia, Chile, Italy, Mexico, Ukraine, Spain, etc.
Expect for the ZLP1000 suspended work platform, the ZLP630 suspended hanging platform, and the ZLP800 hanging platforms are also our best-selling products. To meet the different needs of customers, we can also provide customization services for customers. You can provide design drawings and usage requirements, our design team will communicate with you in depth.
All the construction gondolas are produced in strict accordance with industry standards. And the gondolas will be inspected before leaving the factory to ensure the product quality. Meanwhile, our ZLP series suspended platform and related accessories have obtained ISO9001:2000, CE and EAC certifications. You can always be confident in our products. If you have any purchase plans, please feel free to contact us.
