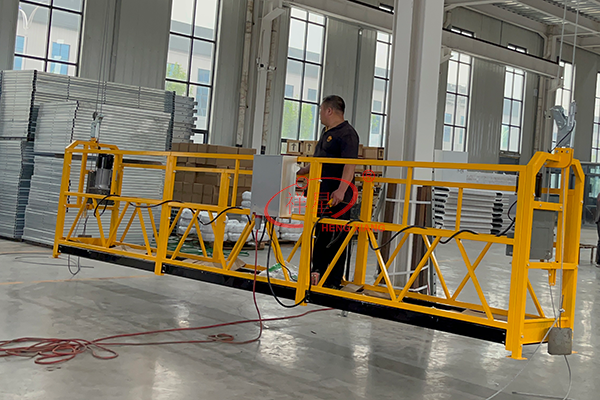

ZLP1000 suspended platform is a popular model of our products. ZLP1000 suspended work platform, also known as gondola lift for building, is a common temporary lifting equipment in construction projects. It’s convenient and safe to work at heights with the gondola.
Our company has a wide range of suspended platforms, including ZLP250 single person suspended platform, ZLP500 electric cradle, ZLP630 hanging work platform, ZLP800 construction gondola, ZLP1000 suspended platform, and non-standard gondolas customization according to customers’ need. We can produce gondola lift in different specifications at the same time to meet market demands.
Specifications of ZLP1000 suspended work platform
| MODEL NUMBER | ZLP1000 |
| Rated Capacity(kg) | 1000 |
| Lifting Speed(m/min) | 8-10 |
| Rated Power(KW) | 2.2×2 |
| Hoist Model | LTD100 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform: L x W x H(mm) | 7500x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 1250 |
| Steel Suspension Platform weight(kg) | 700 |
| Aluminum Suspension Platform weight(kg) | 590 |
Main components of lifting gondola
- Electric Control Box
- Electric Hoist
- Electric Cable
- Safety Lock
- Safety rope
- Steel Wire Rope
- Working Platform
- Upper Column
- Front Beam, Middle Beam, Rear Beam
- Front Support, Rear Support
- Balance Weight
Safety system
- Service brake incorporated in the LTD hoist.
- Two fall arrest devices (Anti-tilt LSF safety lock) acting on the safety wire ropes.
- Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)
- Two upper limit switches.
- No power descent in case of power failure.
- Emergency stop.
- Phase controller. (Option)
With the ZLP1000 suspended cradle, you get to have complete facades access equipment that is equipped with 2 electric LTD hoists along with support wheels. The whole structure is suspended with steel wire ropes that are hoisted from the suspension structure. An effective complete system has been made in such a way that it ensures complete safety of the users at all times and places.
A number of safety devices are fitted with the constructions working platform which help to keep the unit steady. These include the service brake systems incorporated with the LTD hoists, the upper limit switches, 2 fall arrest devices or anti-tilt LSF safety locks that are fitted with the safety wire ropes, the emergency stop option and overload sensor that come with the LTD hoists.
Features of suspended platform
- More safe, economic, efficient, cost saving than traditional scaffolding
- Structure simple, and easy to operate
- Convenient to assemble and disassemble
- Easy to transport and store
- High quality assurance: ISO9001:2000 and CE certification
- Superior service: One Year Quality Warranty And Life-time Technical Support.
Products applications
- Maintenance, decoration, painting and cleaning of building facades.
- Curtain wall installation.
- Window cleaning, installation, repairing.
- Construction inspection and maintenance of tanks, chimneys ,dams, bridges and derricks.
- Building, welding, cleaning and painting of big-size ship.
- All products are warranted for two years.
- Additional consumables are given.
- Guarantees timely delivery
- Detailed installation of after-sales video.
- Strong technical team support.
About our company
Hebei Hengxiang Engineering Material Co., LTD. is a leading suspended platform manufacturer, supplier and exporter in China. Our factory was established in 2008, and through protracted and unremitting efforts, our construction gondolas have been exported to many countries and regions around the world, such as India, Russia, Chile, Italy, Mexico, Ukraine, Spain, the Middle East, Hungary, etc.
Our company supplies ZLP series suspended platform and other non-standard suspended access equipment with high quality and superior service. The non-standard suspended access equipment can be customized according to customers’ need, such as suspended platform for chimney, L shape suspended platform, and bridge suspended scaffolding platform, and so on.
We also have a professional team to design and produce the building gondola lift to ensure products quality and safety. For more information of about prices and specifications of suspended work platform, send your inquiry to us now. We will reply you as soon as possible, and provide the latest quotations.
