A swing stage scaffolding is also known as two point suspended platform or suspended scaffolding system, which is ideal equipment for building facades access. ZLP 630 suspended scaffolding system is a common type in the market, the ZLP 800 and ZLP 1000 are also popular models.
Hengxiang electric swing stage scaffold provides a safe, reliable and cost effective method for quick access to building facades, tanks, chimneys, stacks and other structures not normally accessible from the ground. The rope suspended platform can be customized by the different working sites.
Swing Stage Scaffold Parts
A complete electric suspended scaffolding system consists of electric control box, traction hoist, safety lock, working platform, Anchor device(suspension mechanism or parapet clamp), steel wire rope, safety rope and other components. The following is the construction of some important swing stage parts.

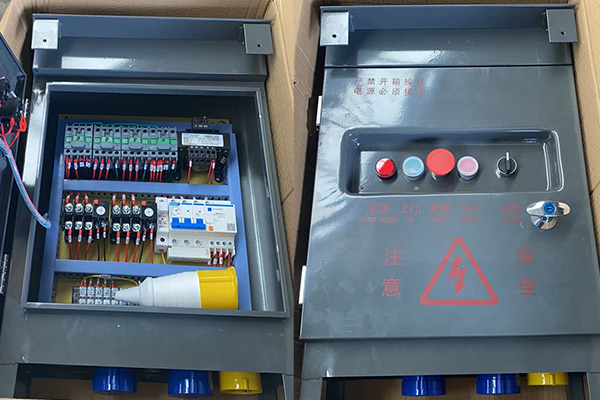

- Electric control box
First class electrical components

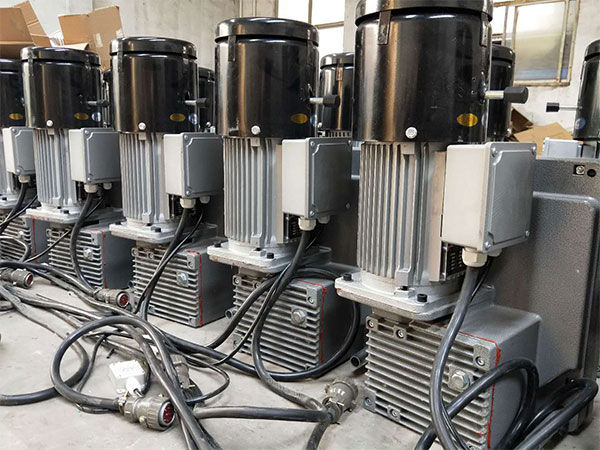

- Traction hoist
LTD series swing stage hoist for sale with famous brand and high quality.
- Safety lock
Anti-Tilt type for end stirrup platform, stainless steel lock core, longer service life.

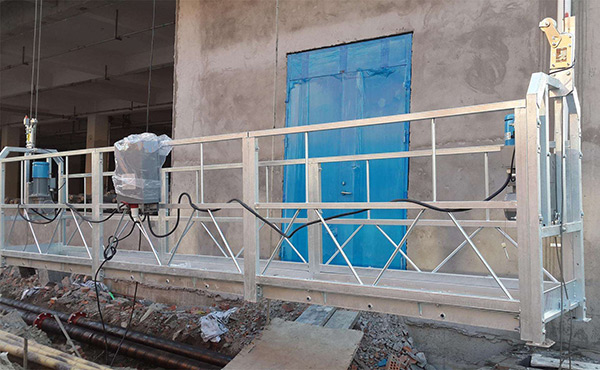

- Working platform
Length can be adjustable, aluminum alloy or steel(painting or galvanized optional)

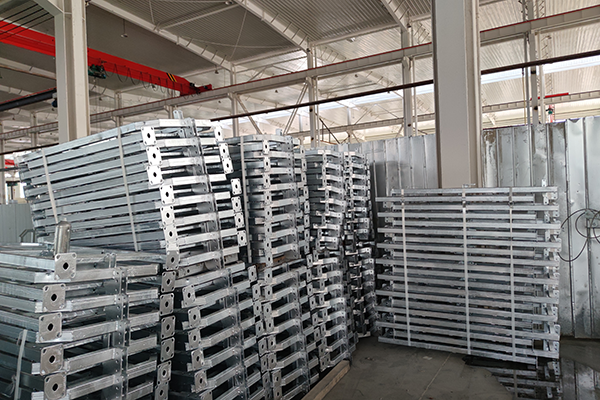

- Anchor device
Suspension mechanism or parapet clamp(used on parapet wall), scientific design, strong and reliable, easy to install.

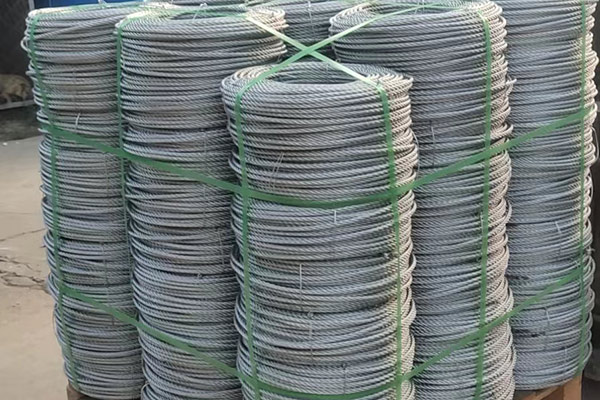

- Steel wire rope, Safety rope
Quality rope, good price.

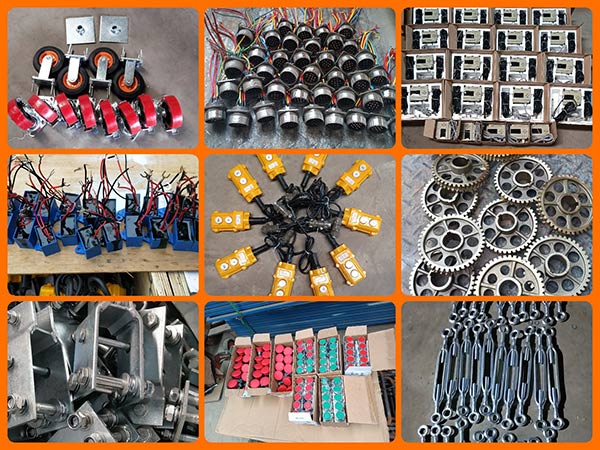

- Other suspended platforms spare parts
ZLP 630 suspended scaffolding systems specification
| MODEL NUMBER | ZLP630 |
| Rated Capacity(kg) | 630 |
| Lifting Speed(m/min) | 9-11 |
| Rated Power(KW) | 1.5×2 |
| Hoist Model | LTD63 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform
L x W x H(mm) |
6000x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 800 |
| Steel Suspension Platform weight(kg) | 500 |
| Aluminum Suspension Platform weight(kg) | 340 |
Applications of swing stage scaffolding
The two point suspended scaffold systems are generally used in high-elevation applications.

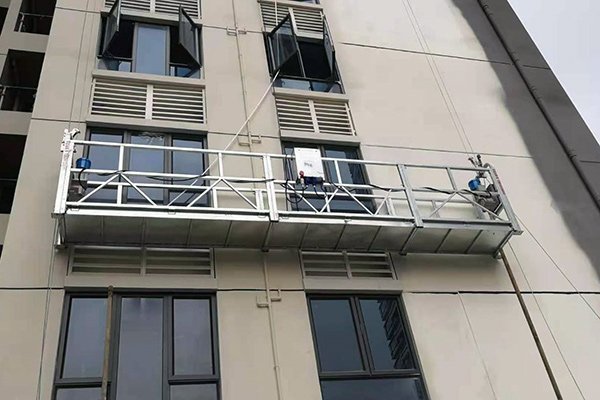

- Exterior wall construction, painting, maintenance, decorating, curtain wall installation of high-rise buildings facades.
- Elevator installation and maintenance.

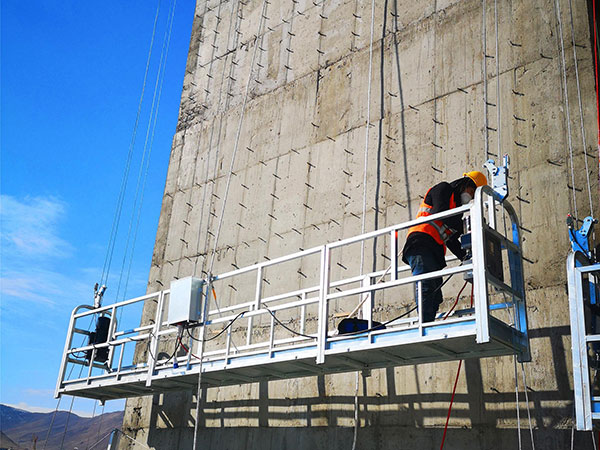

- Construction, maintenance, repairing of a boiler furnace, large chimney, tanks, wind power, etc.
- Construction and maintenance of ships, dams and bridges.
Since the swing stage platform is high-altitude operation equipment, daily maintenance and safety inspection are very important. At the same time, the staff who use the suspended working platform need professional training. In addition, we will provide customers with swing stage setup videos and technical guidance
Recommended article: Suspended platform inspection checklist and safety operation regulations
Advantages of swing stages
- Flexibility: easy to change the length of a working platform, longer lengths also available
- Capacity: swing stage are lightweight with high load capacity
- Speed: Hoist motors provide quick access, save time and improve work efficiency
- Simple structure, quick and easy to assemble
After-sales Services
- All products are warranted for two years.
- Factory prices and guarantees timely delivery.
- Detailed installation of after-sales video.
- Professional technical support.
About Hengxiang Engineering Materials Co., LTD.
Hebei Hengxiang Engineering Materials Co., LTD. is a manufacturer of gondola lift and scaffolding systems in China. The factory was established in 2008, and can offer a wide range of suspended platforms, such as ZLP 630, ZLP 800, ZLP 1000 suspended platform, single person suspended chair, circular suspended platform, L type suspended scaffolding, etc. The ZLP series suspended platforms with ISO, CE and EAC, are popular as high-rise building window washing scaffolding platform.
Except for building gondola lift, Hengxiang can also produce and export walk through scaffolding, ring-lock scaffolding, kwikstage scaffolding, self climbing scaffolding system, foldable scaffolding, motorized scaffolding, and adjustable steel prop, etc. Buy scaffolding parts & accessories direct from the manufacturer & save. Fast shipment and professional services for you all the time.
The leader in electric suspended platforms, Hengxiang can produce and supply premium swing stage scaffold in a variety of lengths for multiple configurations. With an exceptional management team, highly specialized expertise, and outstanding technical and engineering capabilities, Hengxiang delivers professional, custom suspended working cradle solutions by customers’ demand.
