Model: ZLP 500
Capacity: 500 kg
Work Platform Dimension(mm): 5000×690×1180
Hoist Model: LTD50

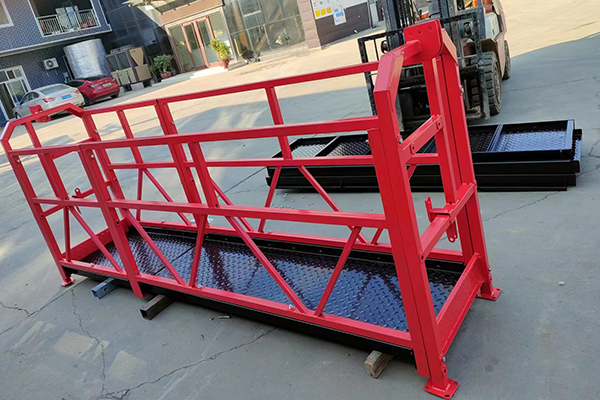

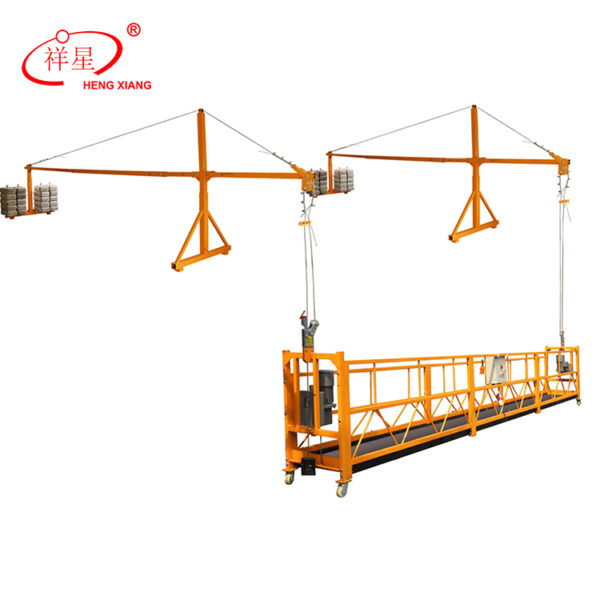

Swing stage platform, also known as a suspended scaffold or hanging scaffold, is a platform that is suspended from steel wire ropes and used for elevated work on buildings or other structures. ZLP 500 suspended platform is a popular model, as is the ZLP 630, ZLP 800.
Swing stage platform, also known as a suspended scaffold or hanging scaffold, is a platform that is suspended from steel wire ropes and used for elevated work on buildings or other structures. ZLP 500 suspended platform is a popular model, as is the ZLP 630, ZLP 800.
MODEL NUMBER | ZLP1000 | ZLP800 | ZLP630 | ZLP500 |
Rated Capacity(kg) | 1000 | 800 | 630 | 500 |
Lifting Speed(m/min) | 8-10 | 8-10 | 9-11 | 9-11 |
Rated Power(KW) | 2.2×2 | 1.8×2 | 1.5×2 | 1.1×2 |
Hoist Model | LTD100 | LTD80 | LTD63 | LTD50 |
Safety Lock Model | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 |
Dimension of platform L x W x H(mm) | 7500x690x1180 | 7500x690x1180 | 6000x690x1180 | 5000x690x1180 |
Suspension mechanism weight(kg) | 250 | 250 | 250 | 250 |
Counterweight(kg) | 1250 | 1000 | 800 | 750 |
Steel Suspension Platform weight(kg) | 700 | 600 | 500 | 400 |
Aluminum Suspension Platform weight(kg) | 590 | 440 | 340 | 290 |
Note: Suspended platform including hoist, safety lock, electric control panel. |
Swing stages are highly versatile and can be adjusted to different heights or positions. They can be used for tasks such as painting, cleaning, maintenance, repairs, window installation, and other construction or maintenance activities on the exterior of buildings.
