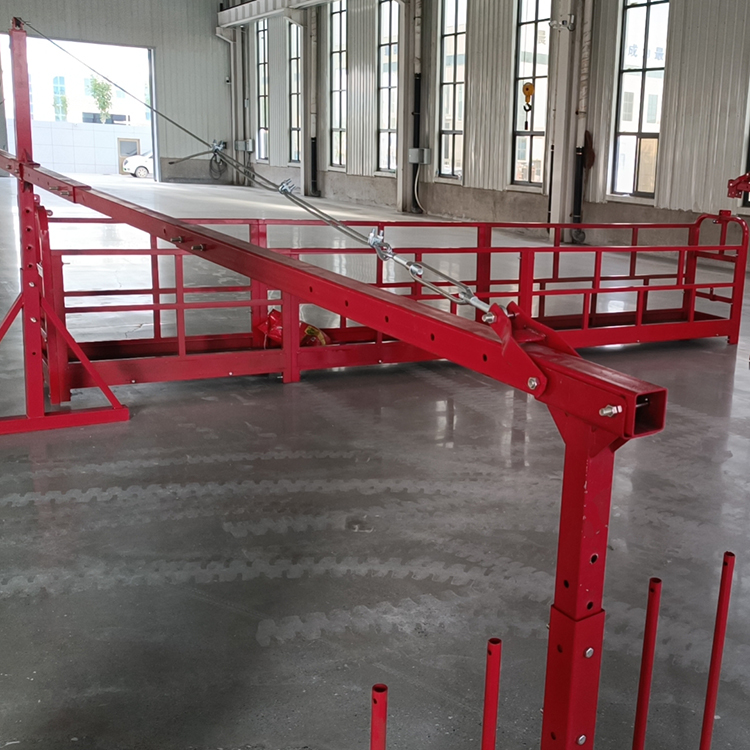

Suspended working platform ZLP500

Short Description:

Suspended working platform

Model: ZLP 500

Capacity: 500kg

Rated Power(Kw): 1.1*2

Hoist Model: LTD50

Hengxiang suspended working platform ZLP500 is made of high quality steel. Our ZLP series suspended platform cradles have obtained ISO9001: 2000, CE and EAC certification. Hengxiang designs and produces suspended platform with a primary focus on a safe work environment for end users.

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Hengxiang suspended working platform ZLP500 is made of high quality steel. Our ZLP series suspended platform cradles have obtained ISO9001: 2000, CE and EAC certification. Hengxiang designs and produces suspended platform with a primary focus on a safe work environment for end users.

suspended platform ZLP500

In addition to the ZLP series of swing stage scaffolding, we also provide customers with customized service of building gondola lift platform, designing and producing non-standard gondolas according to customers’ needs.

ZLP500 Suspended Platform Parts

1. Hoist
2. Safety lock

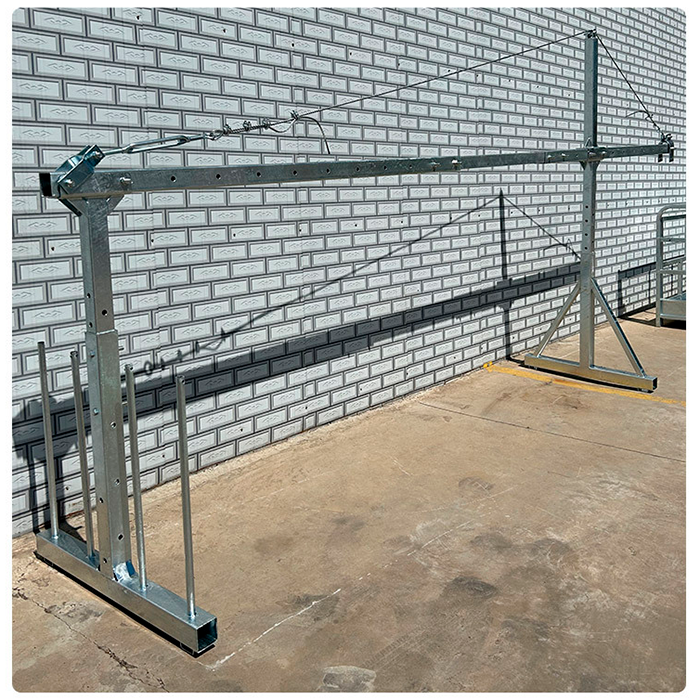

3. Suspension mechanism
4. Electric control box
5. Working platform

Product specification of suspended working platform

MODEL NUMBERZLP1000ZLP800ZLP630ZLP500
Rated Capacity(kg)1000800630500
Lifting Speed(m/min)8-108-109-119-11
Rated Power(KW)2.2×21.8×21.5×21.1×2
Hoist ModelLTD100LTD80LTD63LTD50
Safety Lock ModelLSA30/LSA20LSA30/LSA20LSA30/LSA20LSA30/LSA20
Dimension of platformL *W * H(mm)7500*690*11807500*690*11806000*690*11805000*690*1180
Suspension mechanism weight(kg)250250250250
Counterweight(kg)12501000800750
Steel Suspension Platform weight(kg)700600500400
Aluminum Suspension Platform weight(kg)590440340290
Note: Suspended platform including hoist, safety lock, electric control panel.

Application of suspended working platform

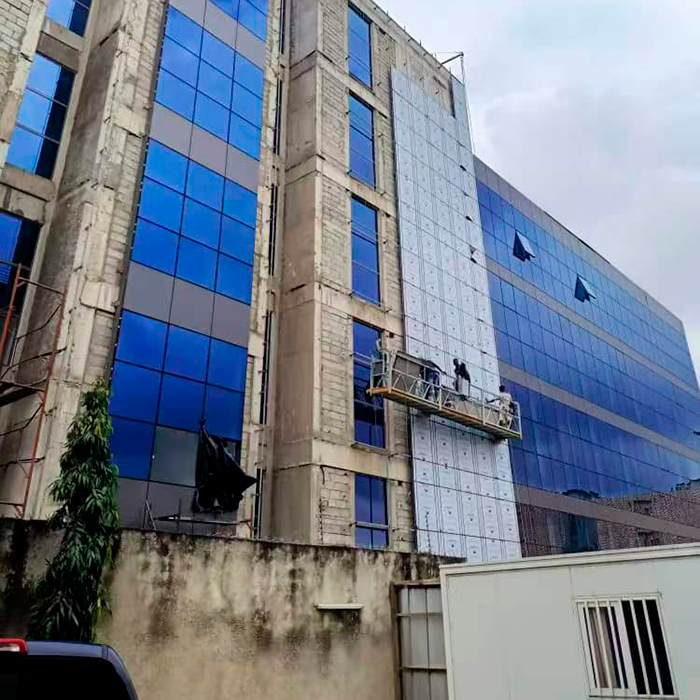

The ZLP 500 suspended platform is mainly used in exterior wall maintenance, decorating and cleaning of high building, such as window glass cleaning, wall coating and painting. It can also be used for building or repairing of ship, big vessels, bridges, chimneys, dams, etc.

suspended working platform

About Hengxiang Engineering Materials Co., LTD.

Hebei Hengxiang Engineering Materials Co., LTD. is a manufacturer and exporter of construction gondola, scaffolding and other construction equipment. The suspended platforms, electric scaffolding, frame scaffolding, adjustable steel props, and folding container house, are our hot selling products.

The ZLP series suspended working platforms are high quality with ISO, CE and EAC certification. Our factory can also supply gondola customization service according to clients’ requirement.

In addition we have also introduced lifting equipment, including hydraulic crane lifter, portable truck-mounted hydraulic trolley, pallet truck and so on.
