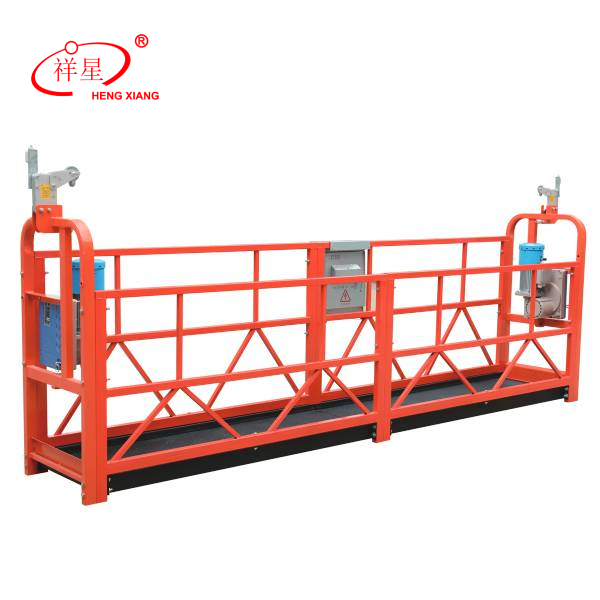

Suspended access cradles, suspended platform ZLP 630

Short Description:

Suspended access cradles are also known as suspended platforms. And the suspended platform ZLP630 is almost one of the most common models on the market.

Product Name: suspended access cradle

Brand: Hengxiang

Model: ZLP 630

Capacity: 630 kg

Origin: China

For more details and price of suspended platform, welcome to send your inquiry to us.

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Suspended access cradles are also known as suspended platforms. And the suspended platform ZLP630 is almost one of the most common models on the market.

Suspended access cradles have taken over the role of traditional construction scaffolds. Suspended platform cradles are mechanical devices that can lift workers and tools into the air to complete work at hard-to-reach heights.

suspended access cradles

Main parts of suspended access cradles

A suspended access cradle is made up of a suspension mechanism( or parapet clamp anchor), working platform, hoists, electric control box, safety lock, steel wire rope, safety rope, etc.

  • Working platform: steel(painting or galvanized), aluminum alloy
  • LTD Series Hoist: Famous brand, and high-quality die-casting aluminum casing
  • LSF Series Safety Lock: Anti-Tilt type for end stirrup platform
  • Electrical Control box: First class electrical components
  • Anchoring Options: normal suspension mechanism(with balance weight) or parapet clamp anchor

Specification of suspended platform ZLP 630

MODEL NUMBERZLP630
Rated Capacity(kg)630
Lifting Speed(m/min)9-11
Rated Power(KW)1.5×2
Hoist ModelLTD63
Safety Lock ModelLSA30/LSA20
Dimension of platform

L x W x H(mm)

6000x690x1180
Suspension mechanism weight(kg)250
Counterweight(kg)800
Steel Suspension Platform weight(kg)500
Aluminum Suspension Platform weight(kg)340

Suspended platform cradle applications

Suspension platform is suitable for all sorts of projects which require working at heights.

  1.  Exterior wall construction, painting, maintenance, decorating, curtain wall installation of high-rise buildings facade.
  2.  Elevator installation and maintenance.
  3.  Construction, maintenance, repairing of a boiler furnace, large chimney, tanks, wind power, etc.
  4.  Construction and maintenance of ships, dams and bridges.

suspended access cradles application

About Hengxiang Engineering Materials Co., LTD

Hebei Hengxiang Engineering Materials Co., LTD is a leading suspended access equipment manufacturer and supplier in China. Our factory was established in 2008, can design and produce standard suspended platforms & special customized suspended hanging platforms. Examples, circular suspended platform for chimney maintenance, bridge suspended scaffolding, 90-degree corner suspended platform, etc.

Our ZLP series suspended platforms have passed CE and ISO certification. And all suspended cradles are in strict compliance with production standards, and through scientific testing to ensure product quality and safety.

So far, our products are exported all over the world, such as Examples are India, Vietnam, Philippines, Indonesia, Singapore, Panama, Russia, Hungary, Spain, Pakistan, Ukraine, Iraq, etc.

If you plan to import hanging work platform from China, please feel free to contact us. We will provide the latest price and suitable purchasing solutions. Looking forward to long-term cooperation in the future.
