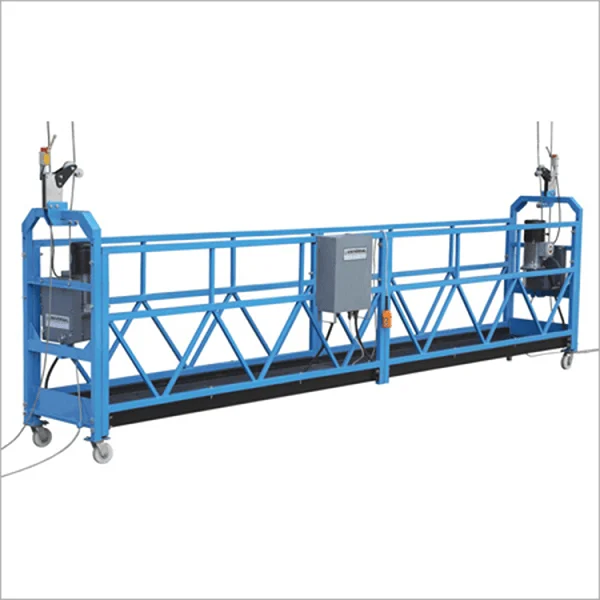

Steel ZLP1000 hanging platform construction is our best-selling product. Another word for construction hanging platform is suspended platform. Besides the ZLP1000 suspended platform, ZLP630 and ZLP800 models are also our popular products.
Generally, due to the higher bearing capacity of the ZLP1000 model building gondola lift, this product is mostly used in construction projects. The hanging platform makes working at heights in construction safer, more efficient, and more economical.
ZLP1000 hanging platform specifications
| MODEL NUMBER | ZLP1000 | ZLP800 | ZLP630 | ZLP500 |
| Rated Capacity(kg) | 1000 | 800 | 630 | 500 |
| Lifting Speed(m/min) | 8-10 | 8-10 | 9-11 | 9-11 |
| Rated Power(KW) | 2.2×2 | 1.8×2 | 1.5×2 | 1.1×2 |
| Hoist Model | LTD100 | LTD80 | LTD63 | LTD50 |
| Safety Lock Model | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 |
| Dimension of platform L x W x H(mm) | 7500x690x1180 | 7500x690x1180 | 6000x690x1180 | 5000x690x1180 |
| Suspension mechanism weight(kg) | 250 | 250 | 250 | 250 |
| Counterweight(kg) | 1250 | 1000 | 800 | 750 |
| Steel Suspension Platform weight(kg) | 700 | 600 | 500 | 400 |
| Aluminum Suspension Platform weight(kg) | 590 | 440 | 340 | 290 |
| Note: Suspended platform including hoist, safety lock, electric control panel. | ||||
ZLP1000 hanging platform parts
- Suspended Cage: Steel or Aluminum Alloy
- Suspension Mechanism: Steel
- Electric hoists
- Safety Lock
- Electric control box
- Steel wire rope
- Power cable
- Counterweights
- Spare parts
Main features of ZLP1000 hanging platform construction
1) Simple structure: Easy to assemble and disassemble
2) The length of the working platform can be adjusted within 1m-10m.
3) The working height can be adjusted with customers’ needs.
4) The voltage can be adjusted with the customer’s requirement.
5) Materials 3 Types: Aluminum alloy, steel (with dipping zinc or galvanized)
Working Principle
The hanging work platform is driven by an electric hoist and steel wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
Applications
ZLP1000 hanging work platform is perfectly suitable for painting, decorating, refurbishing, jointing and repairs, windows cleaning of high-rise buildings, curtain wall installation, facades cleaning, or other works such as large tanks, bridges, dams, and other construction operations.
Certification
Our ZLP series swing stage scaffold for sale and related accessories have obtained ISO9001:2000 & CE & EAC certification. You can always be confident with our products.
About Hengxiang suspended platform
Hebei Hengxiang Engineering Material Co., Ltd. is one of the leading suspended platform manufacturers, suppliers, and exporters in China. Our main products are high altitude electric suspended platforms, and accessories, e. g. safety lock, hoist, electric control panel, and so on. Our products have been exported to more than 20 countries and regions around the world, including India, Brazil, Russia, Chile, Dubai, Spain, Mexico, etc.
We have a professional team to design and produce all the models of the ZLP series suspend platform. Our hanging work platforms strictly follow the industry standards. Advanced production technology and strict testing process to ensure product quality and safety. At the same time, we can also customize non-standard gondolas according to customer needs.
