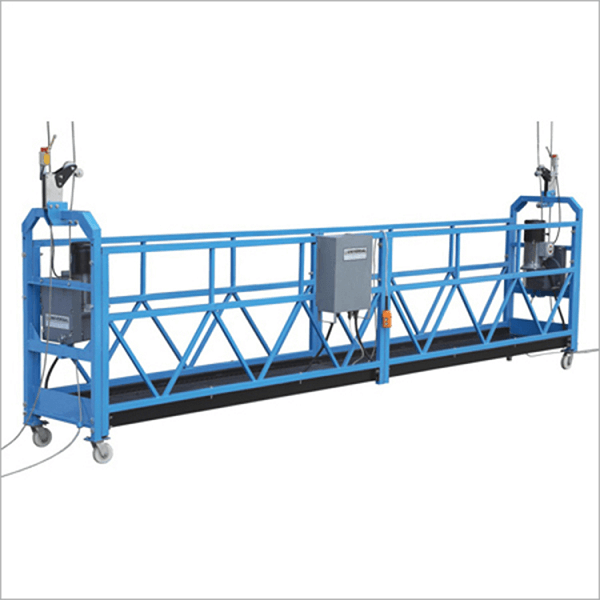

Good quality ZLP1000 hanging platform construction for sale

Short Description:

Model: ZLP 1000 (ZLP250/500/630/800 available)

Capacity: 1000kg

Hoist: LTD100

Weight: 250kg

Counterweight: 1250kg

Origin: China

ISO, CE & EAC certification

For more product information and price list, contact our team for a free quotation.

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Steel ZLP1000 hanging platform construction is our best-selling product. Another word for construction hanging platform is suspended platform. Besides the ZLP1000 suspended platform, ZLP630 and ZLP800 models are also our popular products.

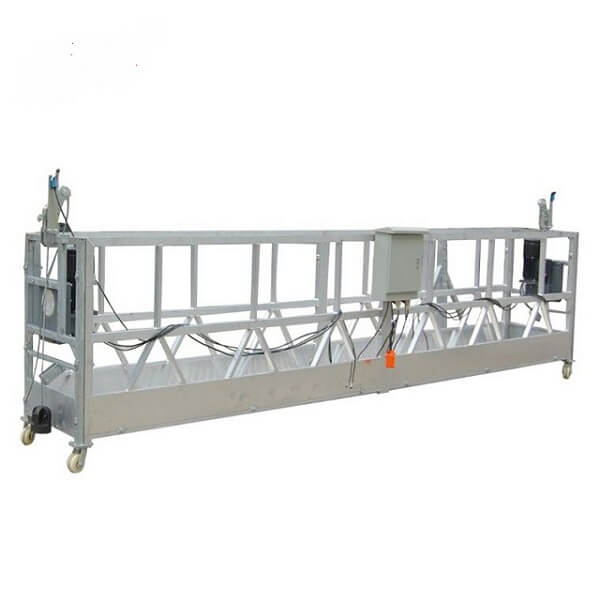

hanging platform construction

Generally, due to the higher bearing capacity of the ZLP1000 model building gondola lift, this product is mostly used in construction projects. The hanging platform makes working at heights in construction safer, more efficient, and more economical.

ZLP1000 hanging platform specifications

MODEL NUMBERZLP1000ZLP800ZLP630ZLP500
Rated Capacity(kg)1000800630500
Lifting Speed(m/min)8-108-109-119-11
Rated Power(KW)2.2×21.8×21.5×21.1×2
Hoist ModelLTD100LTD80LTD63LTD50
Safety Lock ModelLSA30/LSA20LSA30/LSA20LSA30/LSA20LSA30/LSA20
Dimension of platform L x W x H(mm)7500x690x11807500x690x11806000x690x11805000x690x1180
Suspension mechanism weight(kg)250250250250
Counterweight(kg)12501000800750
Steel Suspension Platform weight(kg)700600500400
Aluminum Suspension Platform weight(kg)590440340290
Note: Suspended platform including hoist, safety lock, electric control panel.

ZLP1000 hanging platform parts

  1. Suspended Cage: Steel or Aluminum Alloy
  2. Suspension Mechanism: Steel
  3. Electric hoists
  4. Safety Lock
  5. Electric control box
  6. Steel wire rope
  7. Power cable
  8. Counterweights
  9. Spare parts

hanging platform parts

Main features of ZLP1000 hanging platform construction

1) Simple structure: Easy to assemble and disassemble

2) The length of the working platform can be adjusted within 1m-10m.

3) The working height can be adjusted with customers’ needs.

4) The voltage can be adjusted with the customer’s requirement.

5) Materials 3 Types: Aluminum alloy, steel (with dipping zinc or galvanized)

Working Principle

The hanging work platform is driven by an electric hoist and steel wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.

Applications

ZLP1000 hanging work platform is perfectly suitable for painting, decorating, refurbishing, jointing and repairs, windows cleaning of high-rise buildings, curtain wall installation, facades cleaning, or other works such as large tanks, bridges, dams, and other construction operations.

hanging platform construction

Certification

Our ZLP series swing stage scaffold for sale and related accessories have obtained ISO9001:2000 & CE & EAC certification. You can always be confident with our products.

suspended platform certification

About Hengxiang suspended platform

Hebei Hengxiang Engineering Material Co., Ltd. is one of the leading suspended platform manufacturers, suppliers, and exporters in China. Our main products are high altitude electric suspended platforms, and accessories, e. g. safety lock, hoist, electric control panel, and so on. Our products have been exported to more than 20 countries and regions around the world, including India, Brazil, Russia, Chile, Dubai, Spain, Mexico, etc.

hanging scaffold platform

We have a professional team to design and produce all the models of the ZLP series suspend platform. Our hanging work platforms strictly follow the industry standards. Advanced production technology and strict testing process to ensure product quality and safety. At the same time, we can also customize non-standard gondolas according to customer needs.
