Square Concrete Column Clamp Formwork

Short Description:

Adjustable Square Concrete Column Formwork Clamp for Construction

Material: Q500

Length: 1165mm-3160mm

Weight: 18kg-128kg

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Adjustable Square Concrete Column Formwork Clamp for Construction
* No need tie rod
* Fast installation, quick dismantling
* Reused many times, long service life
* Galvanizing process, easy maintenance without rust

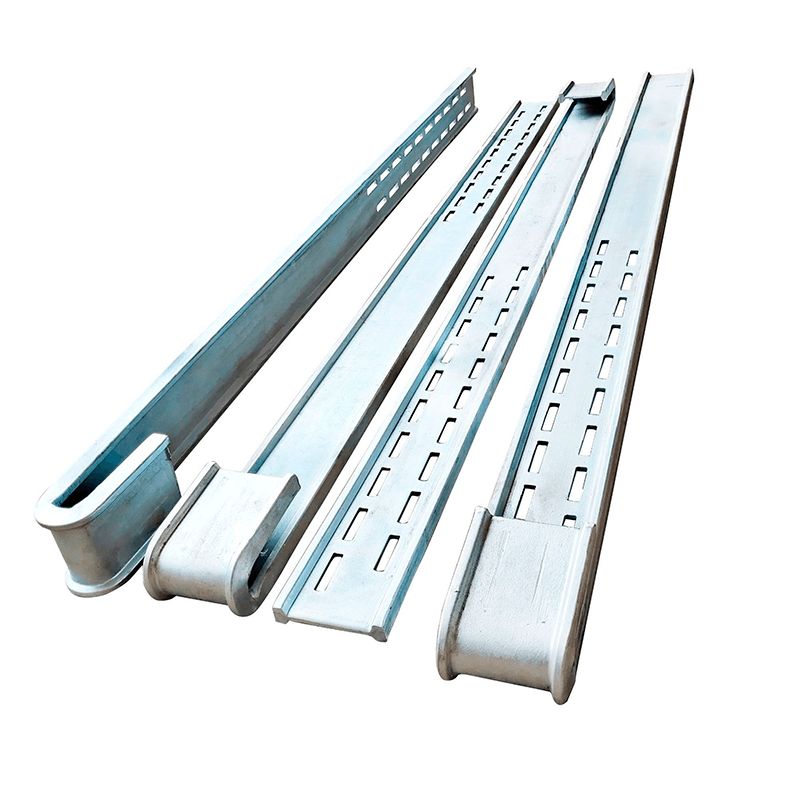

Square Concrete Column Clamp Formwork

Square Column Clamps specifications

SpecMaterialLength(mm)Weight(kg)
8#400-600Q500116518
8#500-800Q500136520.5
10#500-800Q500146531.5
10#700-1000Q500166536.5
10#900-1200Q500166540
10#1100-1400Q500206546
10#1300-1600Q500226550
10#1300-1600(side plate)Q500226565
10#1500-1800(side plate)Q500246575
10#1900-2100(side plate)Q500276086
10#2200-2500(single side plate)Q5003160106
10#2200-2500(double side plate)Q5003160128

Product advantage

1. Adjustable fixed pin: suitable for square column buckle of different sizes, adjustable square column buckle can be used in a set of column construction of different specifications and diameters.

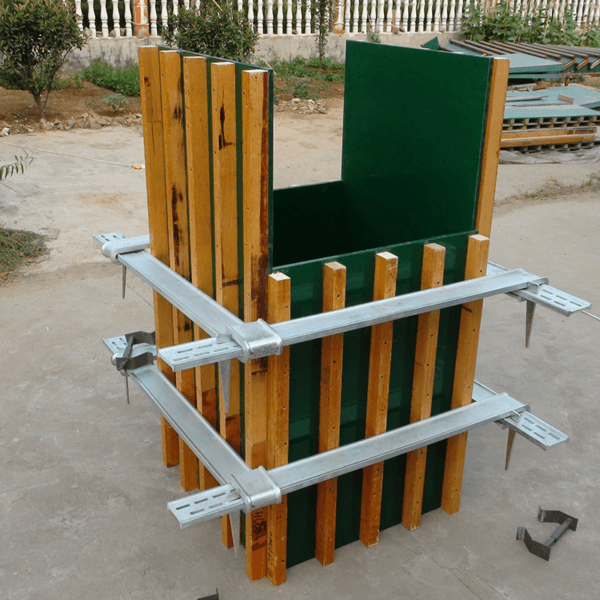

2. Simple installation: Only two workers can easily reinforce the square column clamp. Place the four plates relative to each other at the center of the adjustable square column clamp, then select the corresponding fixing holes according to the size of the square column, and insert fixing pins at the junction of the two plates to complete the installation of the reinforcement.

3. Easy to disassemble: When it is necessary to disassemble, remove the fixed pin and separate the four plates naturally.

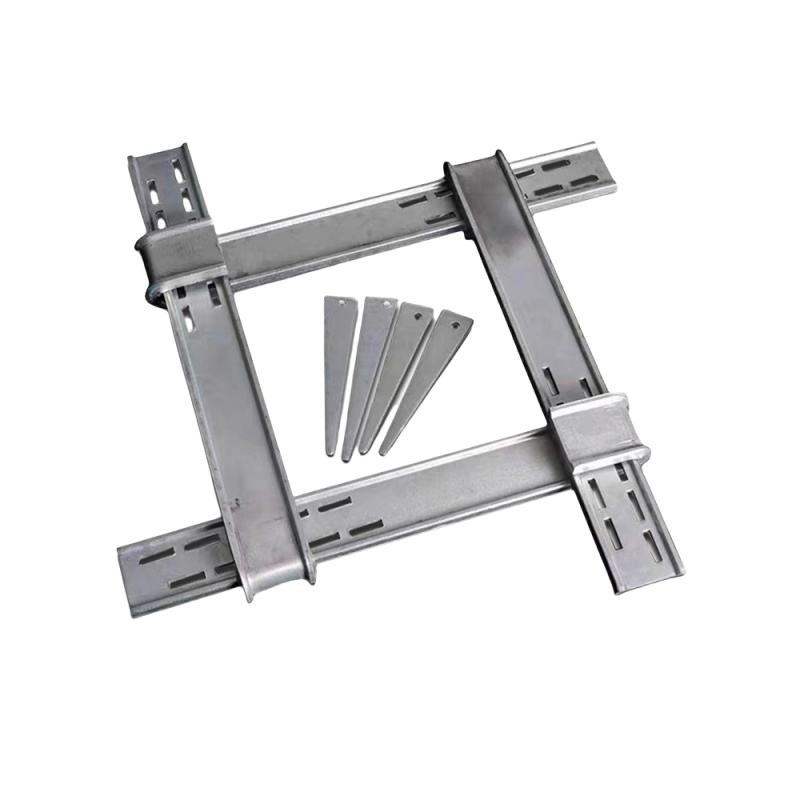

column clamp formwork

Compared with the traditional formwork reinforcement method, the new reinforced formwork does not need to punch holes, has sufficient strength and stiffness, and the concrete appearance quality is good after demudding because the formwork does not need to punch holes, thus increasing the turnover of the wooden formwork and creating good economic benefits.

Adjustable square column clamps are suitable for reinforcing cast-in-place reinforced concrete square column formwork commonly used in engineering construction.
