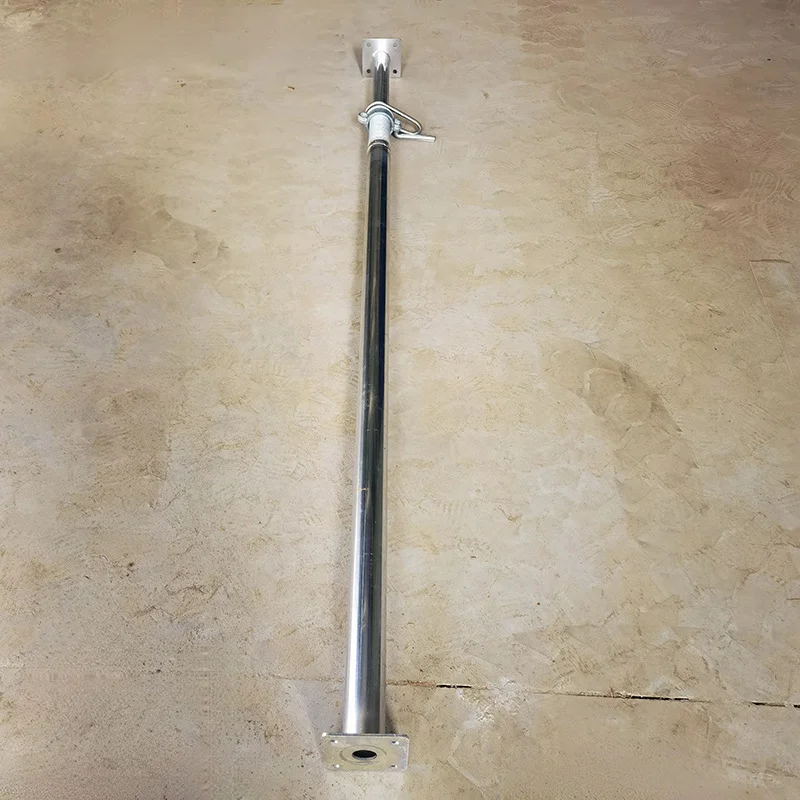

Hengxiang supplies adjustable scaffolding prop jack for construction at factory price. The adjustable props are vertical support system widely used in construction industry, which can provide temporary support and stability.
A scaffolding prop jack is an adjustable support post under the formwork. It carries the loads of concrete slabs, beams, columns and walls. It can be fit for any shuttering, the structure is simple and easy to assemble and disassemble.
|
Product Name
|
Adjustable Scaffolding Acro Steel Prop
|
|
Type
|
Light Duty Props-Spanish Type/Light Duty Props-Italian Type/Heavy Duty Props- Middle east Type
|
|
Surface Treatment
|
Color powder coating, hot dip galvanized
|
|
Top and base plate
|
Flower or square plate as request
|
|
Material
|
Q235, Q345
|
|
Outter/Inner Pipe
|
48/40mm, 56/48mm,60/48mm
|
|
Adjust Height
|
600mm~6000mm
|
|
Pipe Thickness
|
1.4mm~4.0mm
|
|

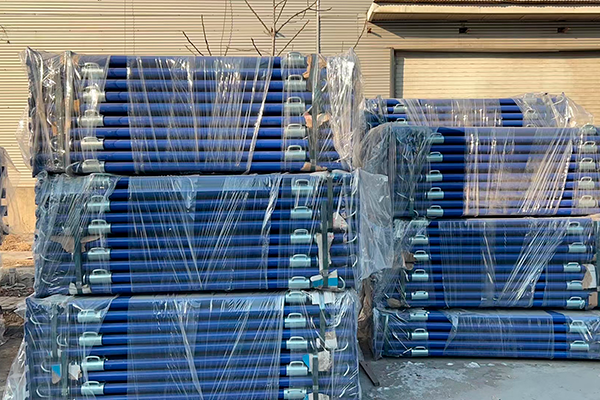

Package
|
in pallets or in bundle or in bulk
|
|
Application
|
slab or formwork supporting
|
|
Weight
|
4.74kg~30kg
|
|
Component
|
bottom plate, outer tube, inner tube, swivel nut, cotter pin, upper plate
|
Adjustable scaffolding prop jack specifications
|
LIGHT DUTY STEEL SHORING PROP |
|
|
Adjustable Length |
1.6-3.0m |
|
1.8-3.5m |
|
|
2.0-3.5m |
|
|
3.5-4.0m |
|
|
3.0-5.0m |
|
|
Internal Tube |
40*2-48*2mm |
|
External Tube |
48*2-56*2mm |
|
Flower Plate |
120*120*4mm |
|
G Type |
LOCK PIN |
|
Surface |
Paint, Galvanized |
|
HEAVY DUTY STEEL SHORING PROP |
|
|
Adjustable Length |
1.8-3.2m |
|
2.1-3.4m |
|
|
2.2-4.0m |
|
|
3.5-4.0m |
|
|
3.0-5.0m |
|
|
Internal Tube |
48*2-48*3.5mm |
|
External Tube |
60*2-60*3.5mm |
|
Flower Plate |
120*120*4.5mm |
|
G Type |
Lock Pin |
|
Surface |
Paint, galvanized |
About Hengxiang Engineering Materials Co., Ltd.
Hebei Hengxiang Engineering Materials Co., Ltd. is a comprehensive enterprise specializing in the research and development, production, installation, maintenance and rental of suspended platform and scaffolding system in building construction.
We can supply Formwork and Scaffolding Accessories System, such as frame scaffolding, kwikstage scaffolding system , ring-lock scaffolding, adjustable steel prop jacks, etc..
