Scaffolding Prop Jack Construction Factory Price

Short Description:

Product: Adjustable scaffolding prop jack

Type: light-duty/heavy-duty

Application: slab or formwork supporting in construction

Multi-specification available

Origin: China

OEM and Customization service

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Hengxiang supplies adjustable scaffolding prop jack for construction at factory price. The adjustable props are vertical support system widely used in construction industry, which can provide temporary support and stability.

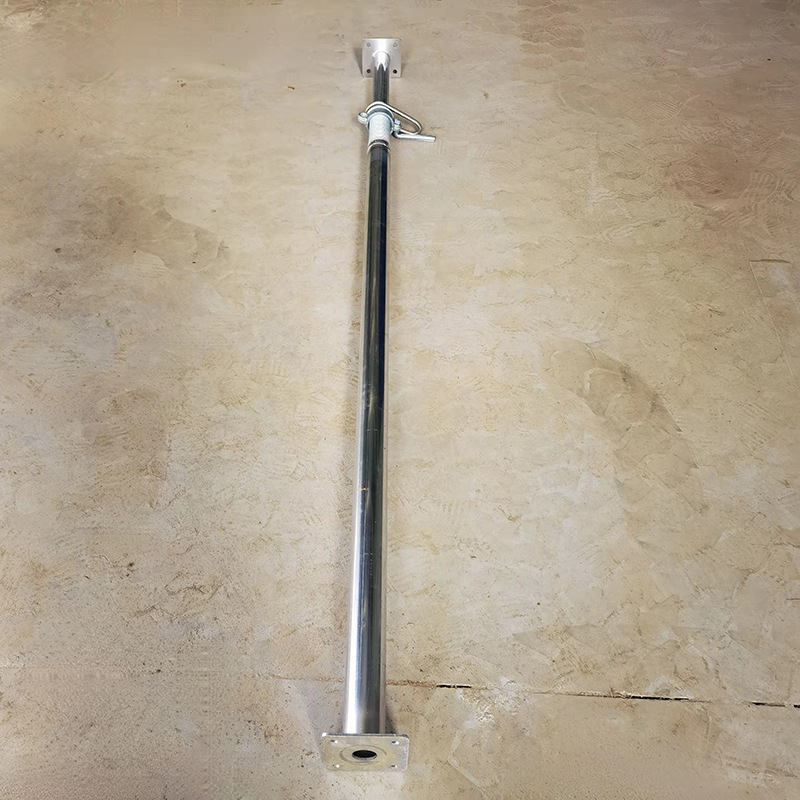

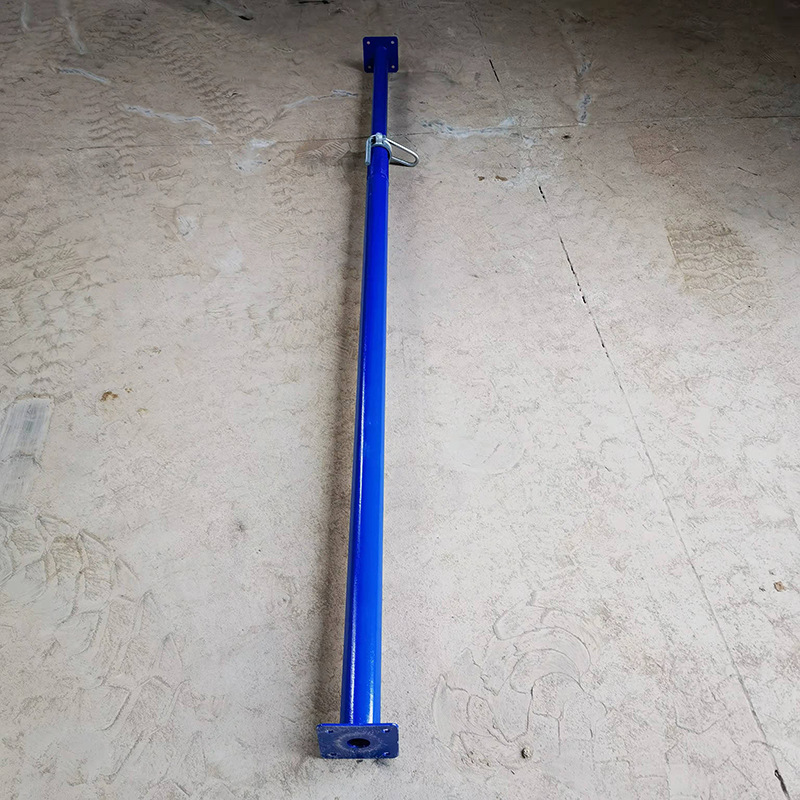

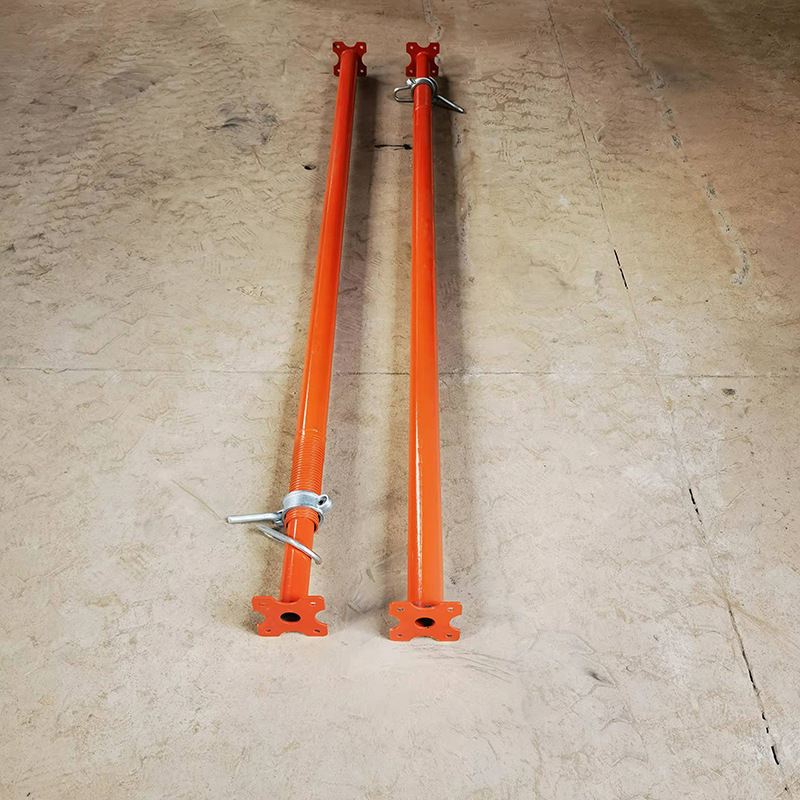

scaffolding prop jack

A scaffolding prop jack is an adjustable support post under the formwork. It carries the loads of concrete slabs, beams, columns and walls. It can be fit for any shuttering, the structure is simple and easy to assemble and disassemble.

adjustable stele prop

Product Name
Adjustable Scaffolding Acro Steel Prop
Type
Light Duty Props-Spanish Type/Light Duty Props-Italian Type/Heavy Duty Props- Middle east Type
Surface Treatment
Color powder coating, hot dip galvanized
Top and base plate
Flower or square plate as request
Material
Q235, Q345
Outter/Inner Pipe
48/40mm, 56/48mm,60/48mm
Adjust Height
600mm~6000mm
Pipe Thickness
1.4mm~4.0mm
Package
in pallets or in bundle or in bulk
Application
slab or formwork supporting
Weight
4.74kg~30kg
Component
bottom plate, outer tube, inner tube, swivel nut, cotter pin, upper plate

Adjustable scaffolding prop jack specifications

LIGHT DUTY STEEL SHORING PROP





Adjustable Length

1.6-3.0m

1.8-3.5m

2.0-3.5m

3.5-4.0m

3.0-5.0m

Internal Tube

40*2-48*2mm

External Tube

48*2-56*2mm

Flower Plate

120*120*4mm

G Type

LOCK PIN

Surface

Paint, Galvanized



HEAVY DUTY STEEL SHORING PROP





Adjustable Length

1.8-3.2m

2.1-3.4m

2.2-4.0m

3.5-4.0m

3.0-5.0m

Internal Tube

48*2-48*3.5mm

External Tube

60*2-60*3.5mm

Flower Plate

120*120*4.5mm

G Type

Lock Pin

Surface

Paint, galvanized

About Hengxiang Engineering Materials Co., Ltd.

Hebei Hengxiang Engineering Materials Co., Ltd. is a comprehensive enterprise specializing in the research and development, production, installation, maintenance and rental of suspended platform and scaffolding system in building construction.

We can supply Formwork and Scaffolding Accessories System, such as frame scaffolding, kwikstage scaffolding system , ring-lock scaffolding, adjustable steel prop jacks, etc..
