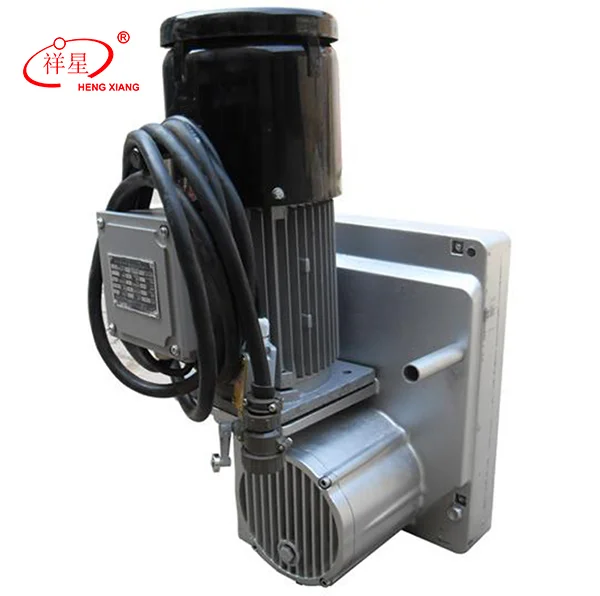

Rope suspended platform hoist motor is a core part of a gondola lift. The electric hoists can drive the work platform cradle up and down. LTD63 and LTD80 are the common models of the suspended platform hoists.
This suspended platform hoist motor consists of an electromagnetic brake, centrifugal speed limiter and dual-speed reduction system, “α” cable-guiding system (LTD63, LTD80). The hoists are driven by the electromagnetic brake three-phase asynchronous motor through the worm gear and a pair of reduced gears.
Specifications of rope suspended platform hoist motor
|
Type
|
LTD63
|
LTD80
|
|
Rated Lifting Force
|
6.3 KN
|
8.0 KN
|
|
Rated Lifting Speed
|
8~10 m/min
|
8~10 m/min
|
|
Dia of Wire Rope
|
8.3mm
|
8.3mm or 8.6mm or 9.1mm
|
|
Motor Voltage
|
380V 50HZ 3PH
|
380V 50HZ 3PH
|
|
Motor Power
|
1.5 kw
|
1.8kw
|
|
Braking Distance
|
≤100mm
|
≤100mm
|
How much does a swing stage motor weigh
Different models of hoists have different weights. The LTD63 model hoist weighs 45 kg, the LTD80 model hoist weighs 50kg.
Advantages of suspended platform hoist
- Extremely reliable: low maintenance, higher efficiency.
- Scientific design: easy to install and incorporate into a certain application.
- Lightweight: maximizes the usable workload for better work performance.
- Stability: constant lifting torque and speed, independent of lifting height.
- Flexibility: power voltage is optional.
- Safety: the hoist motor is fitted with a thermal overload protection device.
Notice: the hoist can be made according to the different voltage and frequency requirements in various countries and zones.
