Rope suspended platform hoist motor is a core part of a gondola lift. The electric hoists can drive the work platform cradle up and down. LTD6.3 and LTD8.0 are the common models of the suspended platform hoists.
Rope suspended platform hoist motor is a core part of a gondola lift. The electric hoists can drive the work platform cradle up and down. LTD63 and LTD80 are the common models of the suspended platform hoists.

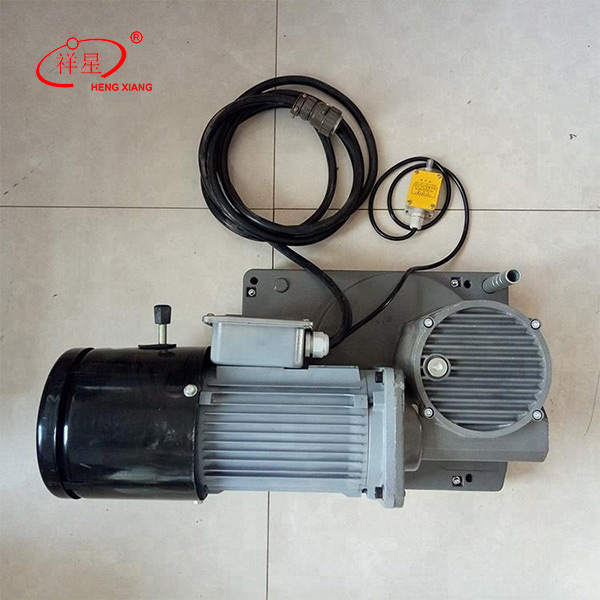

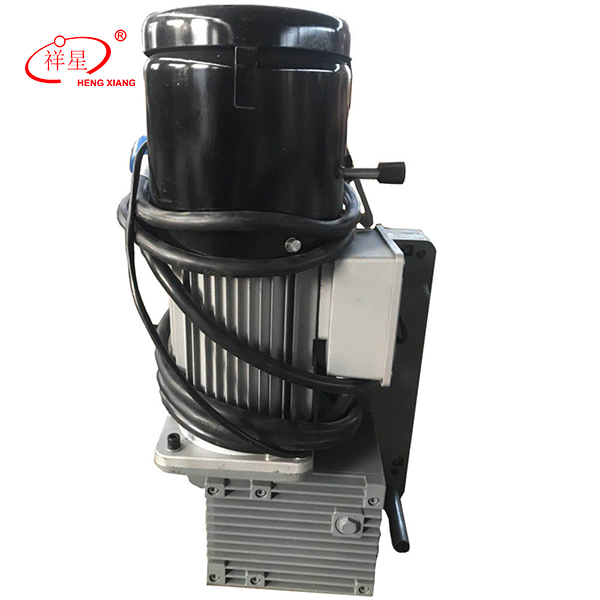

This suspended platform hoist motor consists of an electromagnetic brake, centrifugal speed limiter and dual-speed reduction system, “α” cable-guiding system (LTD63, LTD80). The hoists are driven by the electromagnetic brake three-phase asynchronous motor through the worm gear and a pair of reduced gears.
Type | LTD63 | LTD80 |
Rated Lifting Force | 6.3 KN | 8.0 KN |
Rated Lifting Speed | 8~10 m/min | 8~10 m/min |
Dia of Wire Rope | 8.3mm | 8.3mm or 8.6mm or 9.1mm |
Motor Voltage | 380V 50HZ 3PH | 380V 50HZ 3PH |
Motor Power | 1.5 kw | 1.8kw |
Braking Distance | ≤100mm | ≤100mm |
Different models of hoists have different weights. The LTD63 model hoist weighs 45 kg, the LTD80 model hoist weighs 50kg.
Notice: the hoist can be made according to the different voltage and frequency requirements in various countries and zones.
