Rope hanging platform ZLP500 for sale

Short Description:

Rope hanging platform in construction also called suspended platform or lifting gondola, is a lifting equipment which makes working at heights safer, more convenient and more efficient. ZLP500 suspended hanging platform is versatile. Exterior window cleaning is the most common use of this product.

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

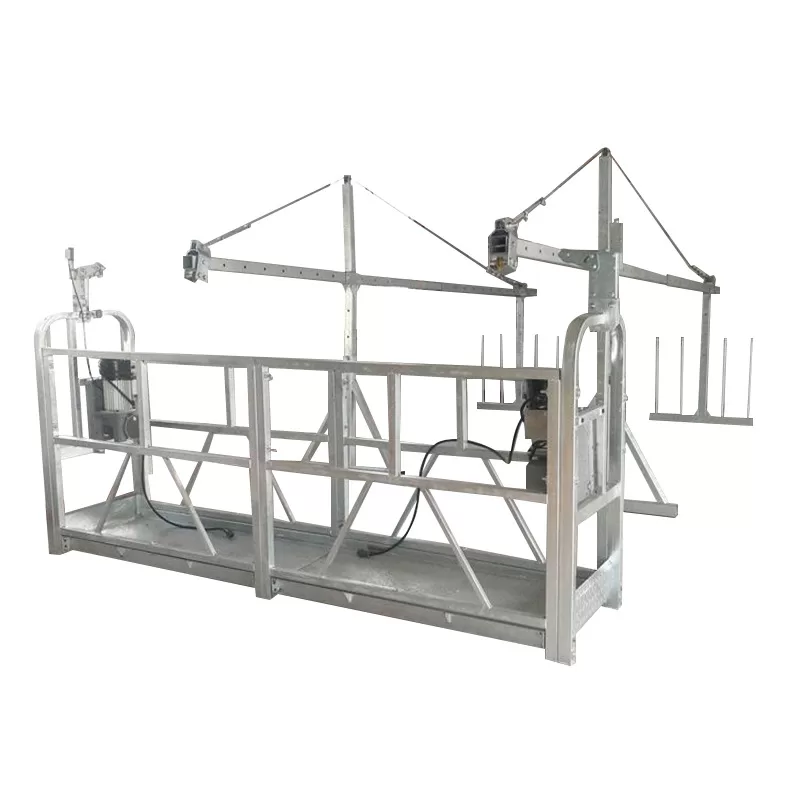

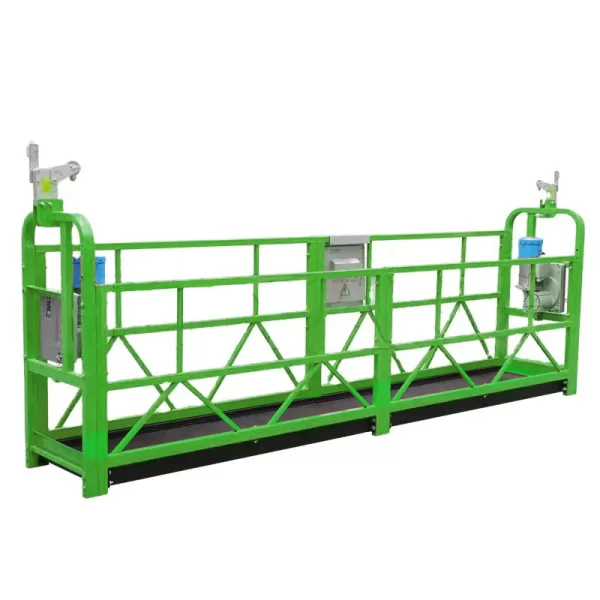

Rope hanging platform in construction also called suspended platform or lifting gondola, is a lifting equipment which makes working at heights safer, more convenient and more efficient. ZLP500 suspended hanging platform is versatile. Exterior window cleaning is the most common use of this product.

rope hanging platform for sale

Product components

  • Suspension Mechanism
  • Working Platform
  • LTD Series Hoist
  • LSB Safety Lock
  • Electric Control Box
  • Electric cable
  • Steel Wire Rope

Specifications of rope hanging platform

MODEL NUMBERZLP1000ZLP800ZLP630ZLP500
Rated Capacity(kg)1000800630500
Lifting Speed(m/min)8-108-109-119-11
Rated Power(KW)2.2×21.8×21.5×21.1×2
Hoist ModelLTD100LTD80LTD63LTD50
Safety Lock ModelLSA30/LSA20LSA30/LSA20LSA30/LSA20LSA30/LSA20
Dimension of platform

L x W x H(mm)

7500x690x11807500x690x11806000x690x11805000x690x1180
Suspension mechanism weight(kg)250250250250
Counterweight(kg)12501000800750
Steel Suspension Platform weight(kg)700600500400
Aluminum Suspension Platform weight(kg)590440340290
Note: Suspended platform including hoist, safety lock, electric control panel.

Hanging platform features

  1. The working platform length can be adjusted from 1-12m.
  2. Convenient and reliable electric control system: Different power supply are acceptable from 220v to 480v, 50/60Hz, single or three phases.
  3. Reasonable structure, attractive appearance and durable working performance
  4. The working height can be adjusted according to customer need.
  5. Multiple material options: aluminum alloy material or steel
  6. Famous brand of steel wire rope
  7. CE & ISO international certified manufacturer
  8. Product customization according to customers construction site situation
  9. Factory directly sale with low cost control

Applications of rope hanging platform

  • Building facade/window glass cleaning, fixing, maintenance
  • Building wall plastering
  • High-rise building decoration
  • Aerial construction work
  • Chimney/ship/bridge maintenance
  • Soil working
  • Curtain wall installation

Superior quality

As one of the leading rope hanging platform manufacturer, supplier and exporter in China, Hengxiang has a professional team to design and manufacture all the models of ZLP series suspended platform. And our ZLP suspended platform and related accessories have obtained ISO and CE certification.
