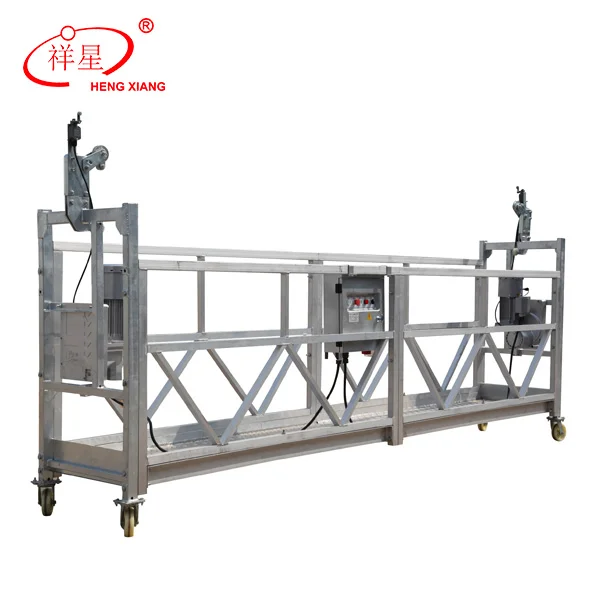

Parapet bracket gondola ZLP630, also called parapet clamp gondola, is a kind of suspended platform which uses a parapet clamp bracket as its suspension mechanism. ZLP630 suspended cradle is our best-selling gondola.
For some special buildings, its roof is not suitable to install the common type of suspension mechanism. The parapet clamp bracket is designed for attaching the working and safety wire rope of any stand-alone suspended platform.
The parapet clamp brackets can be easily attached to any parapet wall with a thickness between 20cm to 50cm. Before every use, it is important to check that the surface on which the clamp is to be mounted can withstand the transmission loads of the clamp. The parapet clamp for suspended platformt is available in various sizes.
Structure of parapet bracket gondola ZLP630

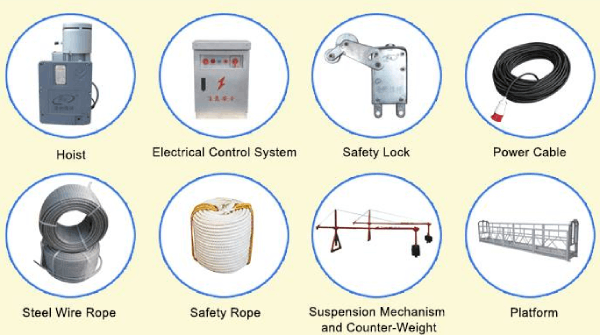

The suspended platform is mainly composed of a suspension mechanism(parapet clamp), hoist, safety lock, electric control box, working platform.
1. Working Platform: the size of the platform can be adjusted, and 3 materials are optional: steel with painting, steel with galvanized, aluminum alloy ;
2. Hoist: from famous brands and with a long lifespan.
3. Safety lock: When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.
4. Electric control box: first-class electrical components, scientific design, waterproof and anti-collision.
5. Parapet clamp bracket: painted and galvanized surface treatment optional.
Specifications of ZLP630 suspended platform gondola
1. Suspended platform
| MODEL NUMBER | ZLP630 |
| Rated Capacity(kg) | 630 |
| Lifting Speed(m/min) | 9-11 |
| Rated Power(KW) | 1.5×2 |
| Hoist Model | LTD63 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform
L x W x H(mm) |
6000x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 800 |
| Steel Suspension Platform weight(kg) | 500 |
| Aluminum Suspension Platform weight(kg) | 340 |
2. Parapet clamp bracket
- The front beam overhang can be adjustable 600mm~1000mm.
- The clamp thickness is 200mm~600mm.
- The load can be as weight as 800kg
* Note: The parapet clamp can be customized according to the needs of customers
Features of suspended platform
- Its structure is reasonable and easy to operate.
- It can be assembled and disassembly according to the actual demand.
- Compared with the traditional scaffold, suspended cradle design is more reasonable, safe, and efficient.
- 3 kinds of materials are optional: steel painted, steel galvanized, and aluminum alloy.
- working height and voltage can be adjusted
Features of the parapet clamp bracket
- Parapet clamp can be designed for special roofing following various structure houses.
- Easily installed, strong enough, convenient for transportation.
- Surface is hot-dip galvanized or steel with painting.
- Maximum load should not be more than 800kg.
- Can be adjusted to complicated buildings of different heights.
- Good safety reliability and maintainability
Application of parapet bracket gondola
Parapet bracket gondola is a piece of practical suspended access equipment, which can be used for high building window cleaning, curtain wall installation, high-rise building façade maintenance, painting, decoration, as well as large bridge construction and maintenance, etc.
