Parapet bracket gondola ZLP630, suspended platform at a good price

Short Description:

Product Name: Parapet Bracket Gondola

Model: ZLP 630(ZLP250/500/800/1000 available)

Capacity: 630kg (250/500/800/1000 kg available)

Brand: Hengixang

Origin: China

Parapet bracket gondola ZLP630, also called parapet clamp gondola, is a kind of suspended platform which uses a parapet clamp bracket as its suspension mechanism. ZLP630 suspended cradle is our best-selling gondola.

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Parapet bracket gondola ZLP630, also called parapet clamp gondola, is a kind of suspended platform which uses a parapet clamp bracket as its suspension mechanism. ZLP630 suspended cradle is our best-selling gondola.

For some special buildings, its roof is not suitable to install the common type of suspension mechanism. The parapet clamp bracket is designed for attaching the working and safety wire rope of any stand-alone suspended platform.

parapet clamp bracket

The parapet clamp brackets can be easily attached to any parapet wall with a thickness between 20cm to 50cm. Before every use, it is important to check that the surface on which the clamp is to be mounted can withstand the transmission loads of the clamp. The parapet clamp for suspended platformt is available in various sizes.

Structure of parapet bracket gondola ZLP630

The suspended platform is mainly composed of a suspension mechanism(parapet clamp), hoist, safety lock, electric control box, working platform.

1. Working Platform: the size of the platform can be adjusted, and 3 materials are optional: steel with painting, steel with galvanized, aluminum alloy ;

2. Hoist: from famous brands and with a long lifespan.

3. Safety lock: When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

4. Electric control box: first-class electrical components, scientific design, waterproof and anti-collision.

5. Parapet clamp bracket: painted and galvanized surface treatment optional.

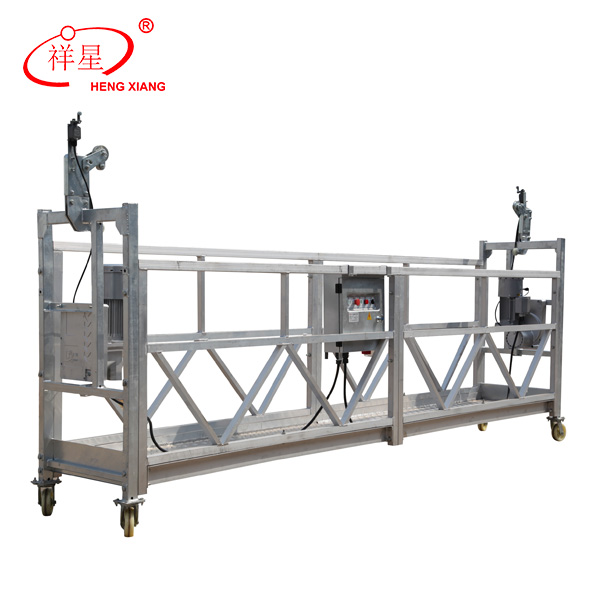

zlp630 suspended platform

Specifications of ZLP630 suspended platform gondola

1. Suspended platform

MODEL NUMBERZLP630
Rated Capacity(kg)630
Lifting Speed(m/min)9-11
Rated Power(KW)1.5×2
Hoist ModelLTD63
Safety Lock ModelLSA30/LSA20
Dimension of platform

L x W x H(mm)

6000x690x1180
Suspension mechanism weight(kg)250
Counterweight(kg)800
Steel Suspension Platform weight(kg)500
Aluminum Suspension Platform weight(kg)340

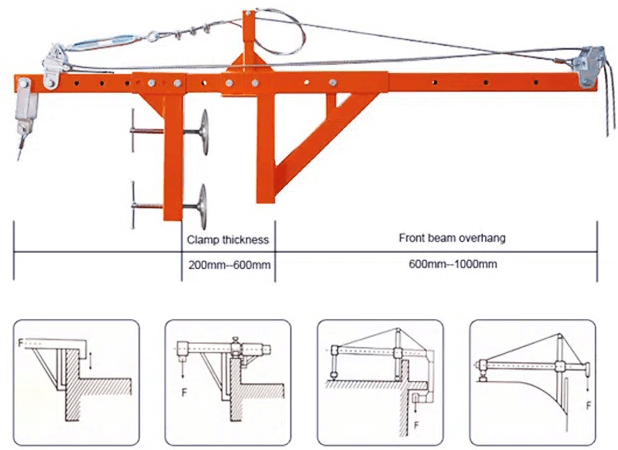

2. Parapet clamp bracket

  • The front beam overhang can be adjustable 600mm~1000mm.
  • The clamp thickness is 200mm~600mm.
  • The load can be as weight as 800kg

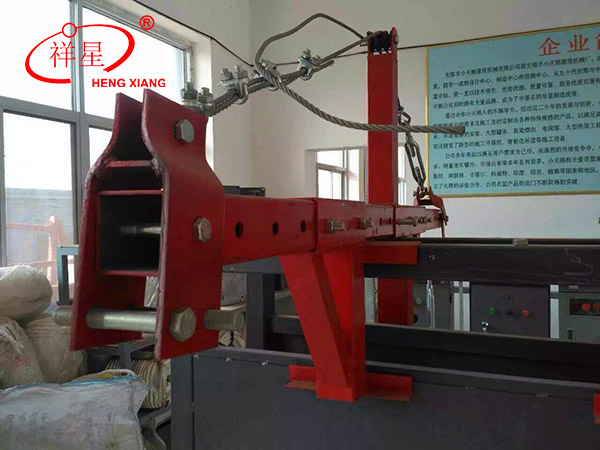

parapet clamp bracket

* Note: The parapet clamp can be customized according to the needs of customers

Features of suspended platform

  • Its structure is reasonable and easy to operate.
  • It can be assembled and disassembly according to the actual demand.
  • Compared with the traditional scaffold, suspended cradle design is more reasonable, safe, and efficient.
  • 3 kinds of materials are optional: steel painted, steel galvanized, and aluminum alloy.
  • working height and voltage can be adjusted

Features of the parapet clamp bracket

  1. Parapet clamp can be designed for special roofing following various structure houses.
  2. Easily installed, strong enough, convenient for transportation.
  3. Surface is hot-dip galvanized or steel with painting.
  4. Maximum load should not be more than 800kg.
  5. Can be adjusted to complicated buildings of different heights.
  6. Good safety reliability and maintainability

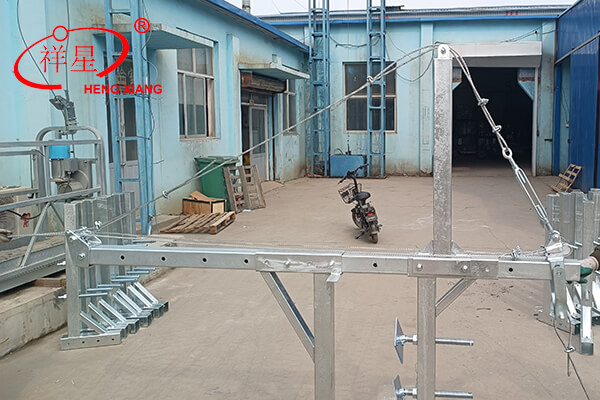

parapet clamp

Application of parapet bracket gondola

Parapet bracket gondola is a piece of practical suspended access equipment, which can be used for high building window cleaning, curtain wall installation, high-rise building façade maintenance, painting, decoration, as well as large bridge construction and maintenance, etc.

About Hengxiang Engineering Materials Co., Ltd

Hebei Hengxiang Engineering Materials Co., Ltd is a leading suspended platform manufacturer with decades of experience. Our company can produce and supply ZLP series suspended platforms and non-standard construction gondolas at a good price and with good service. We have suspended work platforms suited for various worksites and projects.

Our suspended platforms have been exported to manu countries and regions, such as India, Chile, Spain, Hungary, Philippines, Indonesia, Vietnam, Russia, Italy, Finland, the Middle East, etc. And our ZLP series suspended platform has obtained ISO and CE certification. For more information about product price, specifications, please feel free to contact us.
