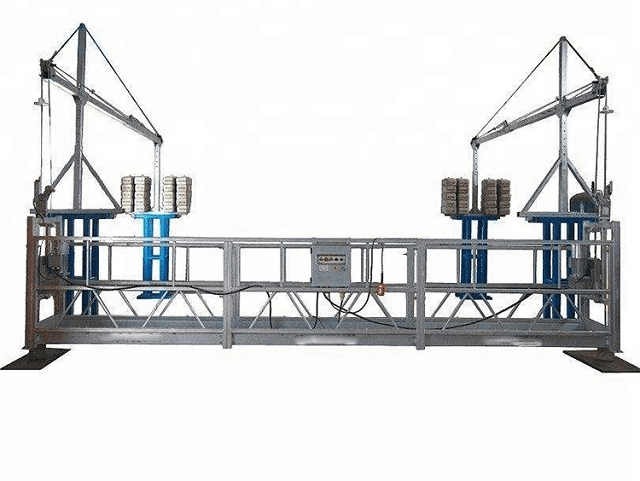

The motorized gondola lift (suspended platform) is a new type of aerial working platform that can replace traditional scaffolding. The electric gondola ZLP800 is hot-sale model. The use of construction suspended cradle can greatly reduce labor intensity and improve labor efficiency.
Specification of motorized gondola ZLP800
| MODEL NUMBER | ZLP800 |
| Rated Capacity(kg) | 800 |
| Lifting Speed(m/min) | 8-10 |
| Rated Power(KW) | 1.8×2 |
| Hoist Model | LTD80 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform: L x W x H(mm) | 7500x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 1000 |
| Steel Suspension Platform weight(kg) | 600 |
| Aluminum Suspension Platform weight(kg) | 440 |

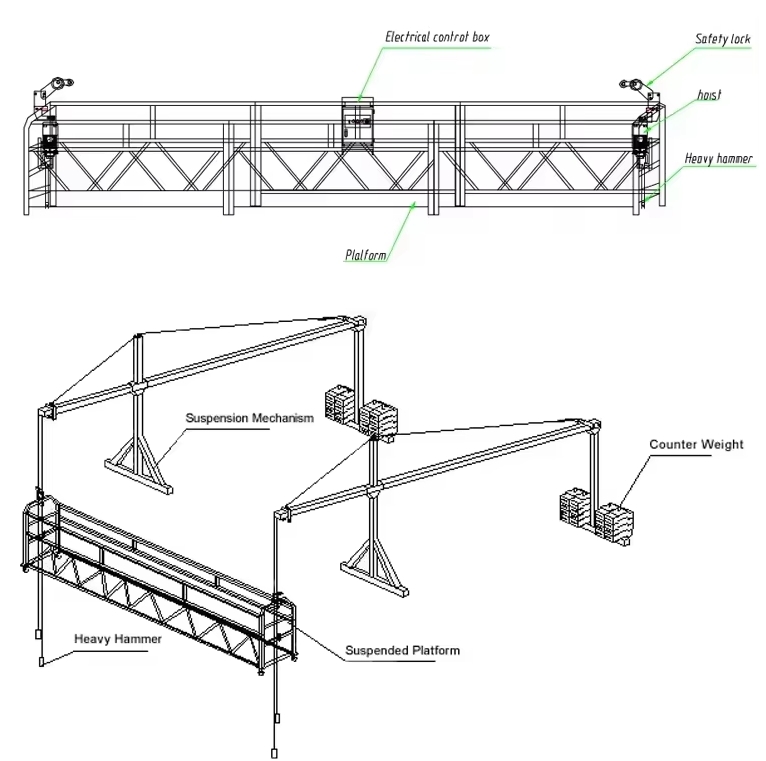

Motorized gondola parts
Suspended cradle system features
-Quick and easy assembly and installation
-The cantilever length, height and width are adjustable, suitable for working on guardrails at different heights, complex building roofs and facades.
-The new rope lock design replaces the clamp and will not cause damage to the wire rope
-If the wire rope length exceeds the working height of the suspended platform, the excess wire rope can be stored on the cantilever.
Application of suspended platform cradle
ZLP series electric suspended working platform is mainly suitable for exterior wall construction, decoration, cleaning and maintenance of high-rise and multi-storey buildings, such as plastering, tiling, painting, installation of wall curtains, etc. It can also be used for material lifting and handling, elevator installation, billboard installation, shipbuilding, large tank construction, bridges, dams, chimneys and other operations.
