Product Name: Kwikstage Scaffolding System
Material: Steel Galvanized or Painted
OEM and ODM
Factory direct and fast shipment
ISO9001:2008, ANAB of USA and UKAS of Britain, European Standard EN1004

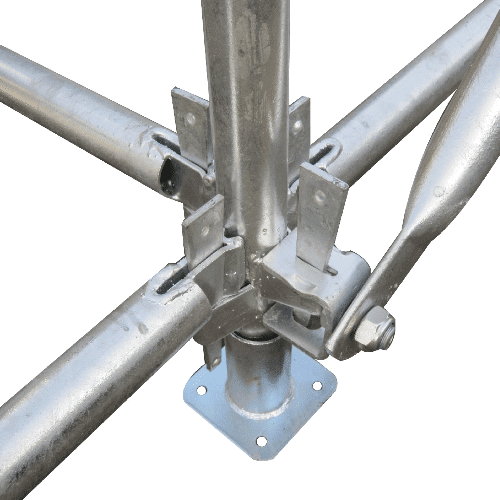

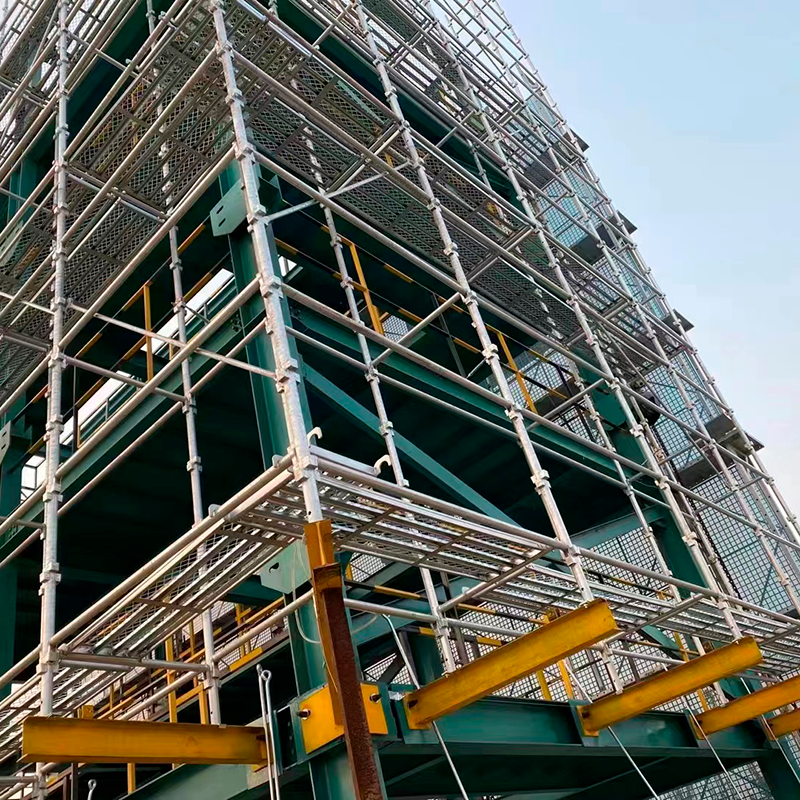

Kwikstage Scaffolding is a modular system scaffolding with wedge fixings for all access scaffolding requirements. The wedge fixing of the table frame and beams provides a simple and quick method of erecting access scaffolding without creating loose parts. Its robust four-way fixing ensures accurate positioning without any movement and standard spigot and wedge fittings ensure vertical alignment.
Component Name | Size | Finishing | Unit weight(kg) |
Kwisktage Standard 48.3mmx3.8mm | 3.0m | Green Painted | 17.5 |
2.5m | 14.5 | ||
2.0m | 11.7 | ||
1.5m | 8.8 | ||
1.0m | 6.5 | ||
0.5m | 3.6 | ||
Kwikstage Ledgers 48.3mmx3.0mm | 2.4m | Green Painted | 8.9 |
1.8m | 6.9 | ||
1.2m | 5.3 | ||
0.8m | 3.7 | ||
0.7m | 3.3 | ||
0.5m | 2.4 | ||
Kwikstage scaffolding Transom, 50mmx50mmx5mm, Q235 | 2.4m | Painted | 23 |
1.8M | 16.2 | ||
1.2M | 9.4 | ||
1.0M | 9.1 | ||
0.8M | 5.6 | ||
0.7M | 5.4 | ||
0.5M | 4.3 |
