High rise window cleaning lift platform, window washing scaffolding suspended ZLP630

High-rise window cleaning lift platform is also called window washing scaffolding suspended, which makes window cleaning safer and more efficient. It’s a good equipment for skyscraper window cleaners. The ZLP630 suspended scaffolding platform is a popular window cleaner lift model in the market.

With more and more high-rise buildings in cities, window cleaning has become an indispensable job. Since the cleaning of the exterior windows of high-rise buildings has certain risks, it is very important to provide a safe working environment for workers.  Nowadays, the window washer platforms rental has also become a popular industry.

The rope suspended platform is an ideal window cleaning lift equipment for high building.  The high-rise window washing lift scaffolding supplies a stable working platform for the window cleaner to stand while cleaning high-rise window glasses. It’s safe and smooth to move up and down to the next floor freely with the window scaffolding systems.

Window cleaning platform parts

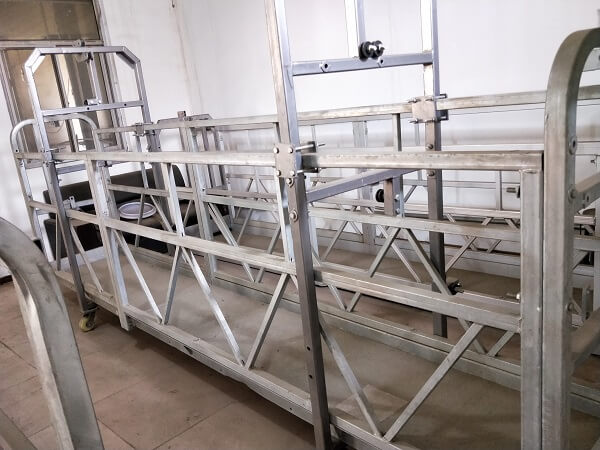

1. Working platform/basket: length can be adjustable, aluminum alloy or steel(painting or galvanized optional)

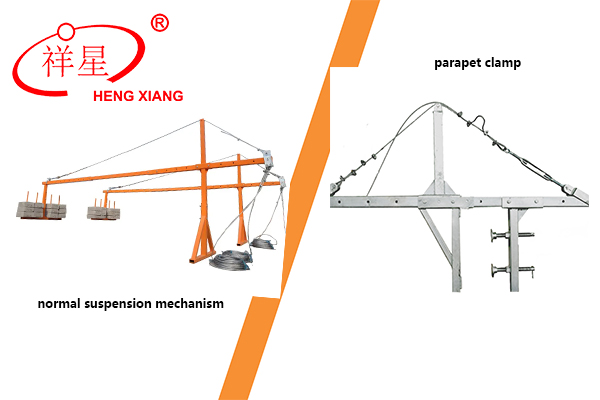

2. Suspension mechanism or parapet clamp: steel(painting or galvanized optional)

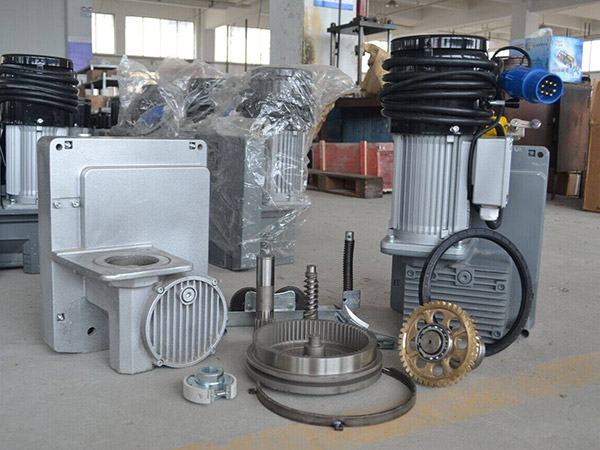

3. Traction hoist: famous brand, high quality

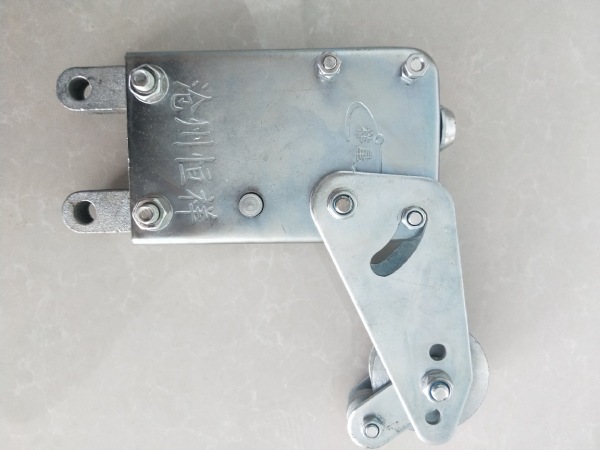

4. Safety lock: Anti-Tilt type for end stirrup platform

5. Electric control box: First class electrical components

Specification of window washing scaffolding suspended ZLP630

MODEL NUMBER ZLP630
Rated Capacity(kg) 630
Lifting Speed(m/min) 9-11
Rated Power(KW) 1.5×2
Hoist Model LTD63
Safety Lock Model LSA30/LSA20
Dimension of platform

L x W x H(mm)

6000x690x1180
Suspension mechanism weight(kg) 250
Counterweight(kg) 800
Steel Suspension Platform weight(kg) 500
Aluminum Suspension Platform weight(kg) 340

There are also other types of suspended working platform, such as ZLP800 and ZLP1000 suspended platforms, etc.. You can choose a suitable model according to the actual requirements. In addition, product customization is available.

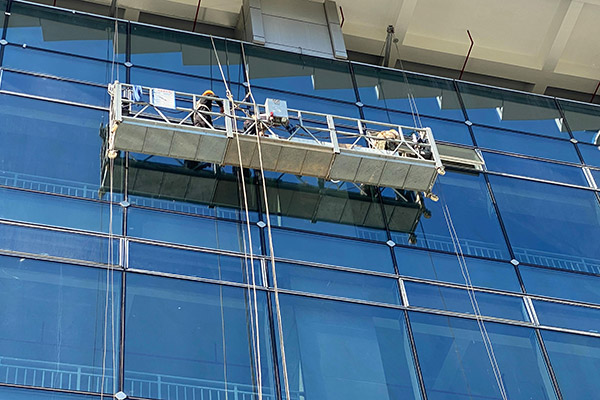

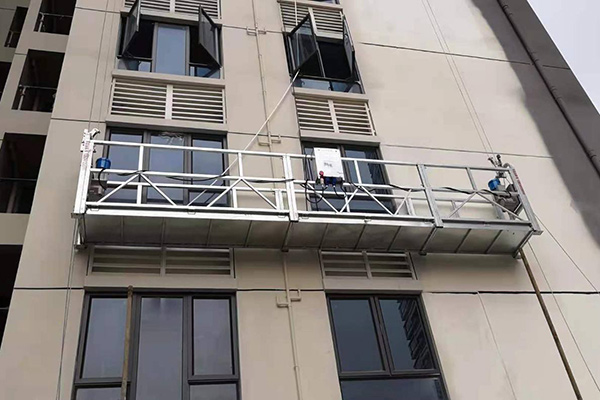

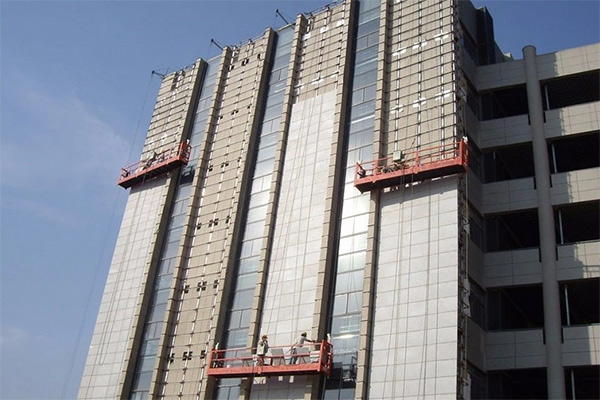

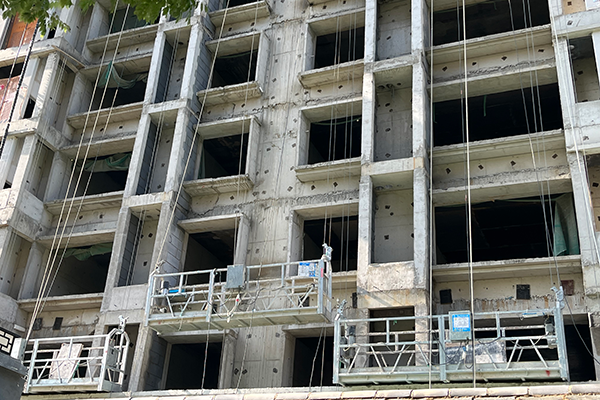

Window washer  lift scaffold application images

International Certification of ZLP series suspended platform

About Hengxiang Engineering Materials Co., LTD.

Hebei Hengxiang Engineering Materials Co., LTD. is a leading suspended access equipment manufacturer and supplier in China. Our company can supply a wide range of facade access equipment, including swing stage scaffolding, mason scaffolding, ring-lock scaffolding, foldable scaffolding, self-climbing scaffolding systems, and lifting equipment etc..

Our ZLP series suspended platforms have passed ISO and CE certifications. We can also design and produce special types of suspended scaffolding platforms, such as circular suspended platform for chimney, bridge suspended scaffolding, suspended platform for dams, L shape suspended platform, and so on.

If you need to customize the hanging work platform, please provide design drawings and usage requirements. Our design team will communicate with you in-depth. Hengxiang will supply high-quality window cleaning platform at a reasonable price. Contact us for a free quote. Look forward to working with you.
