Hanging work platform, ZLP630 suspended platform

ZLP630 suspended platform is one of the most popular products in our company. The gondola lift is a very convenient and practical temporary lifting machinery. The swing stage platform makes aerial work such as window cleaning easy and safe.

We also produce ZLP800 model and ZLP1000 model suspended working platforms. Most hanging platforms have simple maintenance needs and are easy to integrate into various industries’ standard operating routines and procedures.

ZLP630 suspended platform specifications

MODEL NUMBER ZLP630
Rated Capacity(kg) 630
Lifting Speed(m/min) 9-11
Rated Power(KW) 1.5*2
Hoist Model LTD63
Safety Lock Model LSA30/LSA20
Dimension of platform L x W x H(mm) 6000x690x1180
Suspension mechanism weight(kg) 250
Counterweight(kg) 800
Steel Suspension Platform weight(kg) 500
Aluminum Suspension Platform weight(kg) 340

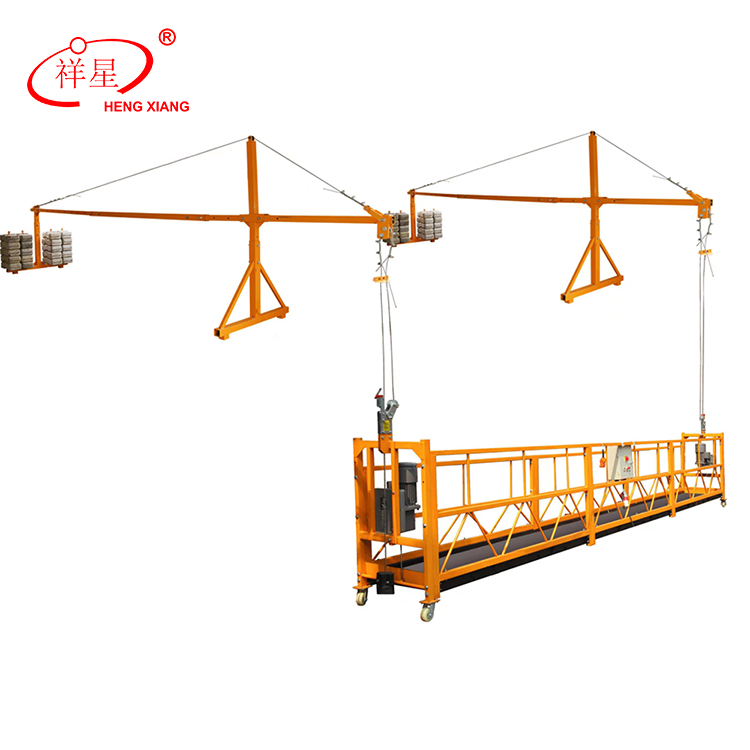

Main components of rope suspended platform

  1. Working Platform: Steel or Aluminum Alloy (plastic coating or hot galvanization)
  2. Suspension Mechanism: Steel (plastic coating or hot galvanization)
  3. Electric hoists: LTD5, LTD6.3 or LTD8
  4. Safety Lock: LSB30
  5. Electric control box: Along with hoists
  6. Steel wire rope: 8.3mm or 8.6mm
  7. Power cable: 1.5mm², 2.5 mm², 4 mm², or 6 mm²
  8. Counterweights: Cement or Cast Iron
  9. Spare parts

Features of hanging work platform

1) Hoist: Inside gear technique (machining-heat treatment-fine machining-surface nitridation-fine grinding), high precision, long services life. Unique anti-rope clamping device, when the rope is clamped, the alarming rings, the motor stops working, so that factor of safety is increased meantime, the maintenance cost of the hoist is reduced.

2) Safety lock: The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness, wear-resistant, long services life, safe and reliable.

3) Electric control panel: Perfect circuit design, including leakage protection, current overload protection, emergency braking. Operate simply, safe and reliable.

4) Cable: Using National Standard cable 2.5*3+1.5*2. The using life is longer than Non-National Standard cable.

5) Simple structure: easy to assemble and disassemble

Working Principle

The construction swing stage scaffolding is driven by electric hoist and steel wire rope, running against the building facades while the suspension mechanism was erected on buildings or structures. It’s a very practical construction suspended access equipment.

Applications

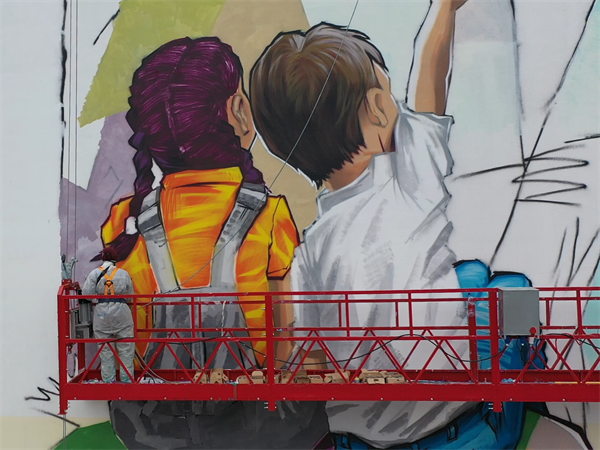

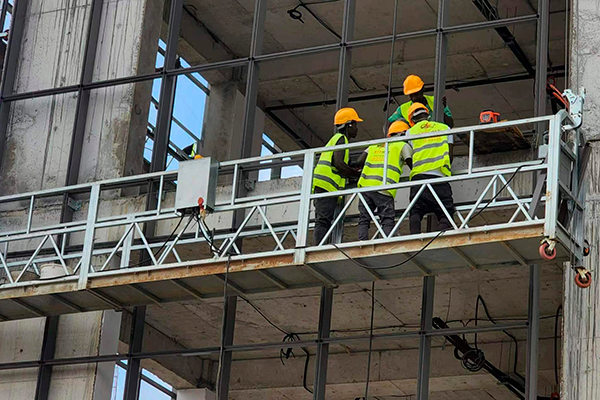

ZLP series suspended platform belongs to power-driven climbing and decorating machinery, which is mainly used for decorating, maintaining and cleaning of high-rise building facades and facade construction, such as cement painting, veneering, coating, glass curtain wall installation, painting, as well as cleaning and maintenance. The rope suspended platform can also be applied to the operation of large ships and bridges, dams and so on.

According to different building structure and actual usage requirements, Hengxiang can design and produce ZLP series gondola lift and special types of suspended scaffolding platform, such as circular suspended platform for chimney, bridge suspended scaffolding, L shape suspended platform, dam work suspended platform, high-rise building window washer platforms etc.

ZLP suspended platform certification

To ensure product quality and safety, Hengxiang ZLP series suspended platform cradle and related accessories have obtained ISO9001:2000 & CE certification.

About Hengxiang Engineering Materials Co., Ltd.

Hebei Hengxiang Engineering Materials Co., Ltd is one of the leading rope suspended platform & scaffolding manufacturers and exporters in China. We have a professional team to design and produce all the models of the ZLP series suspend platform. At the same time, we can also customize non-standard gondola lift according to customers’ needs.

In addition, we can also design and produce other types of temporary access equipment, for example, electric lifting scaffold, mason frame scaffolding, ring-lock scaffolding, foldable scaffolding, kwikstage scaffolding system , self-climbing scaffolding systems, adjustable steel props, scaffolding steel planks, plank hooks and other accessories.  And we can also supply product customization service.
