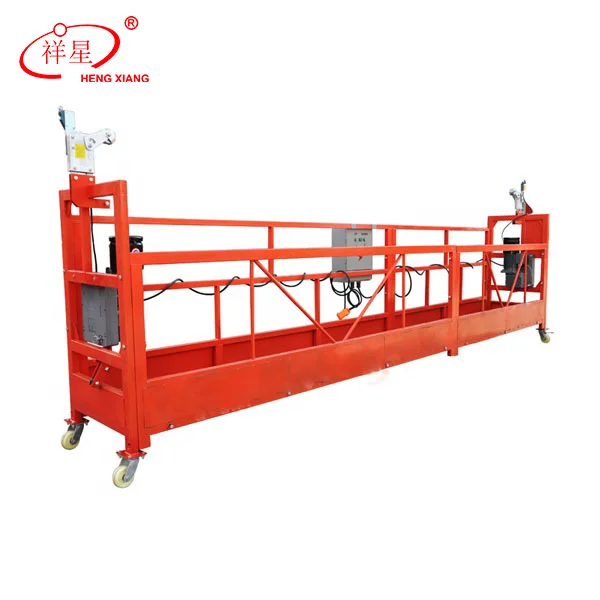

ZLP630 suspended platform scaffold, is an efficient suspended scaffolding systems, which makes building facade construction, maintenance, painting, and other work overhead. It makes the operation more efficient, more safety and more cost-effective.
It is difficult to set up a regular scaffolding system when working on a very tall structure. If you require quick and easy access to tall buildings and structures, the electric swing stage scaffolding is just what you need. A suspended scaffolding system is an ideal choice in situations where tall structures are involved.
Structure of suspended scaffolding system
The ZLP 630 suspended platforms are hung from a permanent solid structure such as a roof and are supported by the use of steel wire ropes. This access system consists of many components, including a suspension mechanism(or parapet clamp bracket), working platform, electric hoist, electric control box, safety lock, safety rope, steel wire rope, etc.
Specification of suspended platforms
| MODEL NUMBER | ZLP630 |
| Rated Capacity(kg) | 630 |
| Lifting Speed(m/min) | 9-11 |
| Rated Power(KW) | 1.5×2 |
| Hoist Model | LTD63 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform L x W x H(mm) | 6000x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 800 |
| Steel Suspension Platform weight(kg) | 500 |
| Aluminum Suspension Platform weight(kg) | 340 |
Application of the efficient suspended scaffolding system
A suspended scaffolding system is a piece of practical suspended access equipment, which can be widely used for high building window cleaning, curtain wall installation, high-rise building facade maintenance, painting, decoration, as well as large bridge construction and maintenance, etc.
Advantages of suspended scaffolds
- Save time, money, and energy
- Great for jobs that require substantial horizontal movement versatility
- It is a flexible scaffold, working height can be adjusted
- It is a lightweight platform that can be suspended easily from an overhead structure.
About Hengxiang Engineering Materials Co., LTD.
Hengxiang Engineering Materials Co., LTD is a leading manufacturer and supplier of suspended scaffolding in China. We produce and supply high-quality suspended scaffolding, ZLP250, ZLP500, ZLP630, ZLP800 and ZLP1000 are all our hot-sale models. Our ZLP series suspended platforms have passed the ISO and CE certifications. We can also supply special types of hanging platforms, such as bridge suspended scaffolding, chimney suspended platform, 90-degree corner suspended platform, etc.
Our factory is established in 2008 and specializes in the research and development, production, installation, maintenance, and leasing of suspended scaffolding and related accessories. Our main products are high altitude electric suspended platforms, mason scaffolds, ring-lock scaffolding, self-climbing scaffolding systems, adjustable steel props, and so on.
Our products have been exported to many countries all over the world, such as India, Hungary, Russia, Indonesia, Chile, Spain, Ukraine, Mexico, Brazil, the Middle East, etc. Our construction suspended platforms are highly praised by the customers. If you plan to import suspended scaffolding from China, please feel free to contact us. We will provide you with the latest price and suitable purchasing solutions. Looking forward to working with you.
