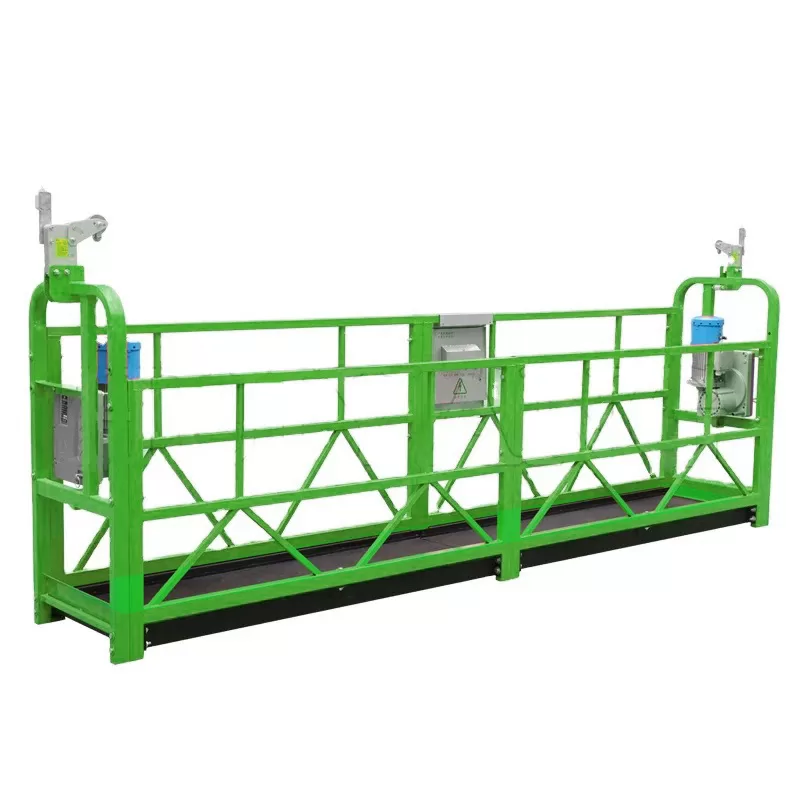

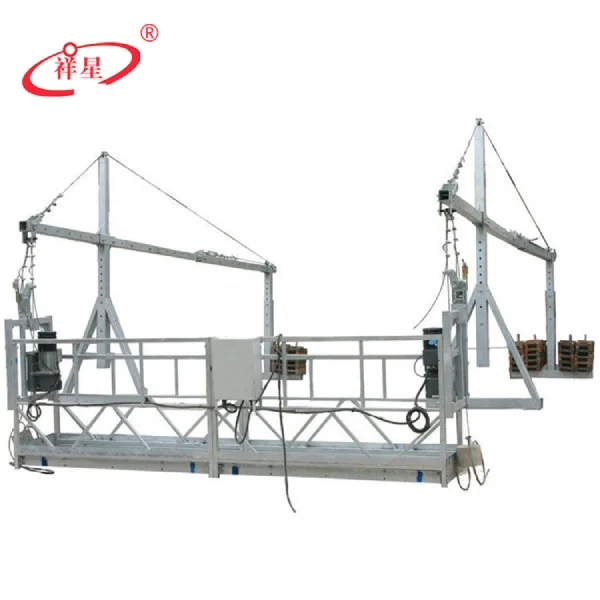

Hengxiang manufactures and supplies construction suspended platform ZLP800, gondola with good quality and superior service. Construction suspended platform ZLP800 is also commonly referred to as adjusting suspended gondola. Suspended working platform is a kind of common high altitude lifting equipment which can transport workers and tools to reach any working height.

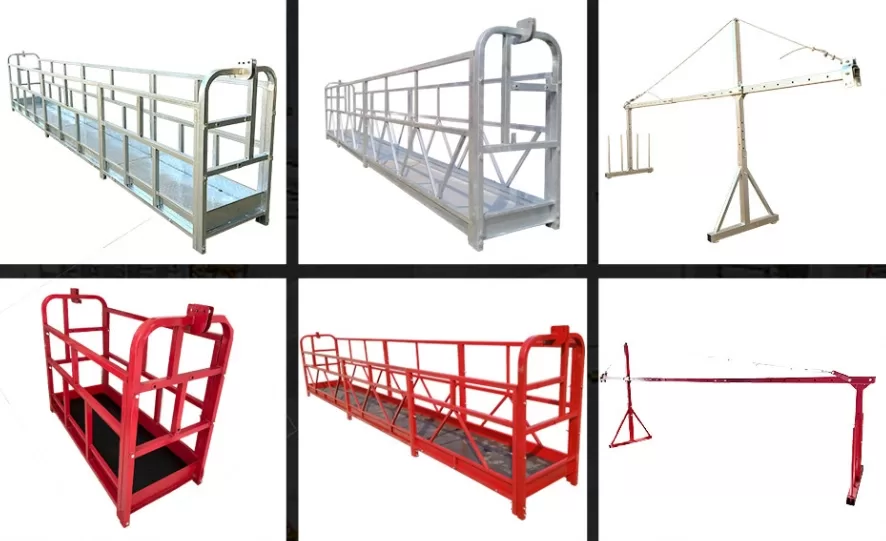

We have a wide range of construction adjusting suspended gondolas and related accessories. And various specifications of suspended work platform are available.
Products specification
MODEL NUMBER | ZLP800 |
Rated Capacity(kg) | 800 |
Lifting Speed(m/min) | 8-10 |
Rated Power(KW) | 1.8×2 |
Hoist Model | LTD80 |
Safety Lock Model | LSA30/LSA20 |
Dimension of platform: L x W x H(mm) | 7500x690x1180 |
Suspension mechanism weight(kg) | 250 |
Counterweight(kg) | 1000 |
Steel Suspension Platform weight(kg) | 600 |
Aluminum Suspension Platform weight(kg) | 440 |
Construction suspended platform parts
- Electric Control Box
- Electric Hoist
- Electric Cable
- Safety Lock
- Safety rope
- Steel Wire Rope
- Working Platform
- Upper Column
- Front Beam, Middle Beam, Rear Beam
- Front Support, Rear Support
- Balance Weight
Construction ZLP800 suspended platform application
- Exterior maintenance painting, decoration, and cleaning of high-rise buildings
- Curtain wall installation
- Construction inspection and maintenance of large chimneys, dams, tanks, and bridges, etc
- Welding, painting and cleaning of ship
Features of construction gondola lift
- The length of working platform can be adjusted within 1M-30M.
- The working height can be adjusted with customers’
- The voltage can be adjusted.
- Materials options: Aluminum alloy, Steel(plastic coating or hot galvanization)
- CE and ISO9001:2000 international certificates.
After sales service
- All products are warranted for two years.
- Additional consumables are given.
- Guarantees timely delivery and after-sales service.
- Detailed installation of after-sales video.
- Strong technical team support.
About Hengxiang Engineering Materials Co., LTD.
Hebei Hengxiang is a professional construction gondolas manufacturer and exporter in China. Our factory is established in 2008. Our main products are high altitude electric suspension platform, H frame scaffolding, ladder scaffolding, ring-lock scaffolding, self-climbing scaffolding system, adjustable steel props and suspended platforms accessories, e. g. safety lock, hoist, electric control panel and so on.
Hengxiang can design and produce standard suspended platform cradle, non-standard suspended access equipment according to customers’ demands, for example, circular suspended platform for chimney cleanding, bridge suspended scaffolding, L shape suspended platform, suspended platform for dam, etc.
ZLP series suspended platforms produced by Hengxiang have obtained CE and ISO international certifications. Our suspended platforms are exported to many countries around the world, such as India, Russia, Dubai, Spain, Philippines, Chile, etc. And our products have been widely recognized and praised by customers. If you are interested in our gondolas, or have any purchase plan, please feel free to contact us, and get the latest price of suspended platform.
