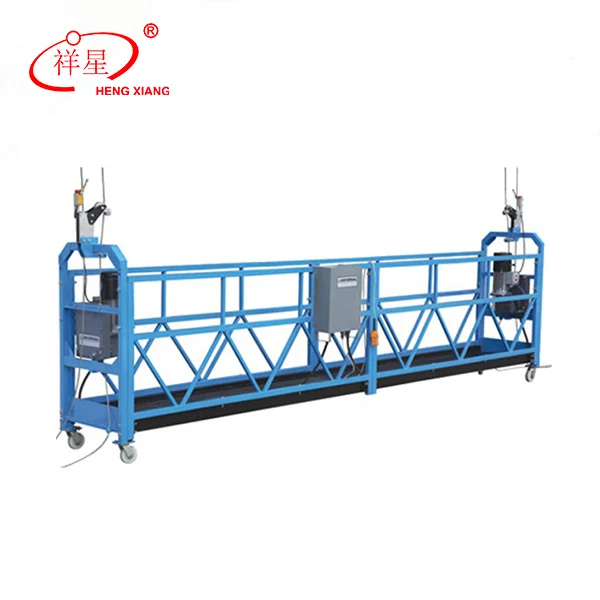

Hengxiang is a leading manufacturer of China suspended scaffolding platform. Our company aims to produce high-quality and safe suspended access equipment for working at heights. The ZLP 630 suspended scaffold equipment is our popular product.
The suspended scaffolding platform is also known as construction gondola. Its platform is hung by steel wire ropes from an anchor structure that is fixed to the roof or parapet wall.
ZLP series suspended platform components
1. Anchor structure
Suspension mechanism or parapet clamp, chosen according to actual usage scenarios.
2. Working platform
Length can be adjustable, aluminum alloy or steel(painting or galvanized optional)
3. Traction hoist
The materials and parts used in the hoist are top quality. This makes the hoist strong and reliable. It also provides great life expectancy.

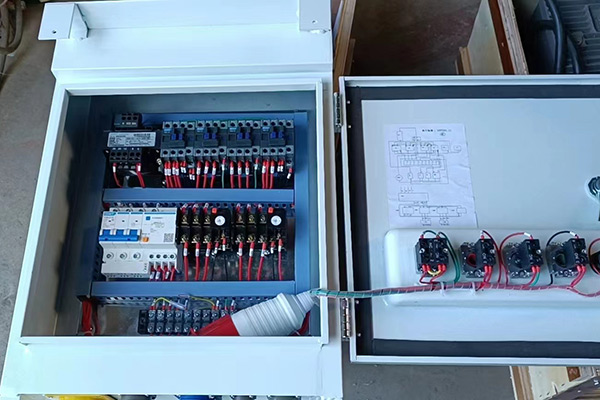

4. Electric control box
First class electrical components, professional waterproof design, and individually marked wires for easy identification.
5. Safety lock
Anti-Tilt type for end stirrup platform, a separate mechanical unit that can automatically lock safety wire rope when the working wire rope is broken or suspended platform tilts to its limits.
Specifications of ZLP series suspended scaffolding platform
| MODEL NUMBER | ZLP1000 | ZLP800 | ZLP630 | ZLP500 |
| Rated Capacity(kg) | 1000 | 800 | 630 | 500 |
| Lifting Speed(m/min) | 8-10 | 8-10 | 9-11 | 9-11 |
| Rated Power(KW) | 2.2×2 | 1.8×2 | 1.5×2 | 1.1×2 |
| Hoist Model | LTD100 | LTD80 | LTD63 | LTD50 |
| Safety lock model | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 |
| Dimension of platform L x W x H(mm) | 7500x690x1180 | 7500x690x1180 | 6000x690x1180 | 5000x690x1180 |
| Suspension mechanism weight(kg) | 250 | 250 | 250 | 250 |
| Counterweight(kg) | 1250 | 1000 | 800 | 750 |
| Steel suspension platform weight(kg) | 700 | 600 | 500 | 400 |
| Aluminum suspension platform weight(kg) | 590 | 440 | 340 | 290 |
| Note: Suspended platform including hoist, safety lock, electric control panel. | ||||

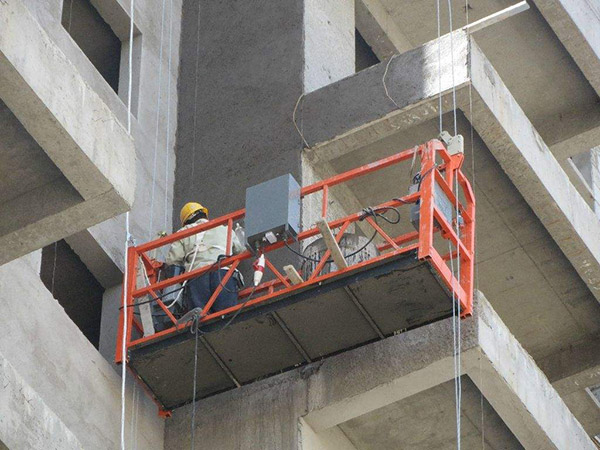

Application of suspended scaffold
- High-rise building: Decoration, construction for external wall, installation of curtain wall and external components, repairing, checking, maintenance, and cleaning for external wall
- Large-scale project: construction, repairing, and maintenance of a large tank, chimneys, dams, bridges, derrick
- Large ships: welding, cleaning, and painting
- Billboard: installation of billboard for high-rise building
Adventurers of suspended scaffolding system
- Provide temporary access to various aerial work, such as building maintenance, at construction sites, or in industrial environments.
- Its structure is reasonable and easy to operate.
- It can be assembled and disassembly according to the actual demand.
- Compared with traditional scaffolding, suspended scaffold design is more reasonable, safer, and more efficient.
- 3 kinds of materials are optional: steel painted, steel galvanized, and aluminum alloy.
- Working height and voltage can be adjusted, 220V/380V/450V available
ZLP suspended scaffolding platform certification
The ZLP 250, ZLP500, ZLP630, ZLP800, and ZLP 1000 suspended platforms and related accessories have passed ISO&CE certification.
After-sales service
- All products are warranted for two years.
- Additional consumables are given.
- Detailed installation of after-sales video.
- Strong technical team support.
About Hengxiang Engineering Materials Co., LTD.
Hebei Hengxiang Engineering Materials Co., LTD. is a leading suspended platform manufacturer and supplier in China. Our company has a wide range of suspended scaffolds, including the ZLP series swing stage scaffold for sale, and non-standard suspended access equipment, such as bridge suspended platform, circle suspended platform, window washing platform, etc. Products customization is available according to clients’ requirements.
Except for the temporary suspended platform, our factory can also produce frame scaffolding, ring-lock scaffolding, self-climbing scaffolding, electric scaffolding, adjustable steel shoring props, temporary construction barrier, crane lift box, and unloading platform for high-rise buildings, etc.
If you are interested in our products, please get in touch with our team to learn about more product details, and get a free product catalog and quotation.
