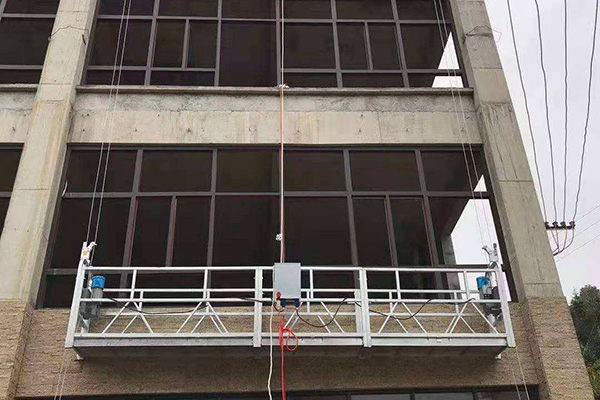

Hengxiang designs and produces the best suspended scaffolding equipment around the world. And the ZLP1000 suspended platform is one of our hot-sale models. The suspended scaffolding equipment is an ideal temporary lifting access platform.
Suspended scaffolding equipment structure
The gondola lift for building usually consists of a work platform, supporting frame/guardrails and a suspension system, hoist, safety lock, electric control box, safety rope, steel wire rope, etc. The scientific and reasonable design structure makes the product easy to assemble and operate.
Important components of the suspended scaffold platform
- Working platform/basket: steel with painting or galvanized, aluminum alloy
- LTD Series Hoist: High-quality Die-casting aluminum casing
- LSF Series Safety Lock: Anti-Tilt type for end stirrup platform
- Electrical Control box: First class electrical components
- Anchoring Options: normal suspension mechanism(with balance weight) or parapet clamp bracket
Suspended platform cradle specifications
| MODEL NUMBER | ZLP1000 |
| Rated Capacity(kg) | 1000 |
| Lifting Speed(m/min) | 8-10 |
| Rated Power(KW) | 2.2×2 |
| Hoist Model | LTD100 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform: L x W x H(mm) | 7500x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 1250 |
| Steel Suspension Platform weight(kg) | 700 |
| Aluminum Suspension Platform weight(kg) | 590 |
Application of suspended scaffolding system
- Repair, paint, maintenance, and cleaning of the exterior wall of high-rise buildings.
- Window cleaning and curtain wall installation of the high building facade.
- Construction, inspection, repair, and maintenance of the large project, for instance: chimney, dam, bridge, and head frame.
- Elevator installation and maintenance.
- Welding, cleansing, and oil-painting of large ships, dams and bridges.
- Fabrication and installation of bulletin boards on high buildings.
About our company
Hebei Hengxiang Engineering Materials Co., LTD. is the largest manufacturer of suspended access cradles and scaffolding systems in China. Our ZLP series suspended scaffolding platform has obtained ISO and CE certifications.
The hot-sale models of ZLP suspended platforms are including ZLP630, ZLP800, and ZLP1000. In addition, we also can design and produce non-standard construction gondolas according to customers’ needs, such as bridge suspended scaffolding, the circular suspended platform for chimney, and so on. At the same time, our single-person electric gondola is very popular as an exterior window washing scaffolding device
Except for suspended scaffolding equipmet, our company can also supply mason scaffolding, ring-lock scaffolding, self-climbing scaffolding system, temporary construction barrier fence panels, etc. Our products have been exported to many countries and regions, such as India, Mexico, Hungary, Spain, Chile, Singapore, Russia, South Africa, Ethiopia, Pakistan, the Middle East, etc. If you are interested in our gondolas or plan to import the suspended platforms from China, please feel free to contact us and get a free quotation today. Looking forward to long-term cooperation with you.
