An adjustable suspended scaffold is also known as a temporary suspended platform. The most common type of suspended platform is two points suspended scaffold. Our factory produces ZLP series suspended platform scaffolding with ISO, CE and EAC certification. And the ZLP800 suspended scaffolding is one model of the best-selling construction gondolas at good factory prices.
Hengxiang ZLP swing stage scaffold for sale is widely used for multiple uses, such as wall painting, window cleaning, exterior wall maintenance and construction of high-rise buildings, and curtain wall installation. In addition, the efficient suspended scaffolding system can also be applied for power stations, shipyards, municipal projects, etc.
We can design and produce special types of suspended scaffolding platforms according to different application sites. Our special suspended scaffolds are including chimney suspended platform, bridge suspended scaffolding, wind power suspended platform cradle, etc.
Adjustable suspended scaffold parts

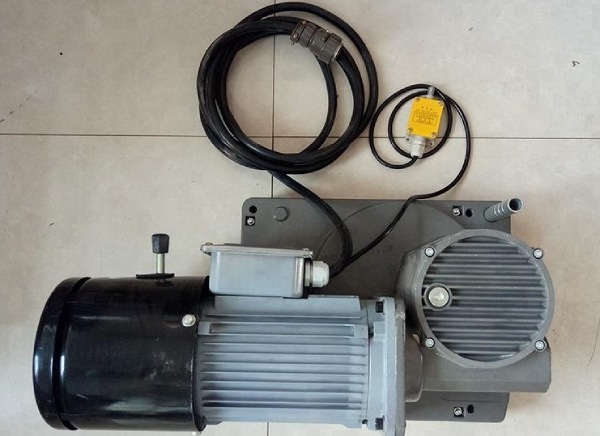

Hoist
The hoist consists of electromagnetic brake motors, centrifugal governor, speed-reducing system, rope guiding system, etc. The hoist adopts an “α” type rope guiding system with an automatic reeving function. The operator just needs to insert the rope into the hoist inlet.
The electromagnetic brake motor can be actuated automatically under the circumstances of electrical failure or power interruption and generates braking torque which can support and stop the suspended scaffolding platform.

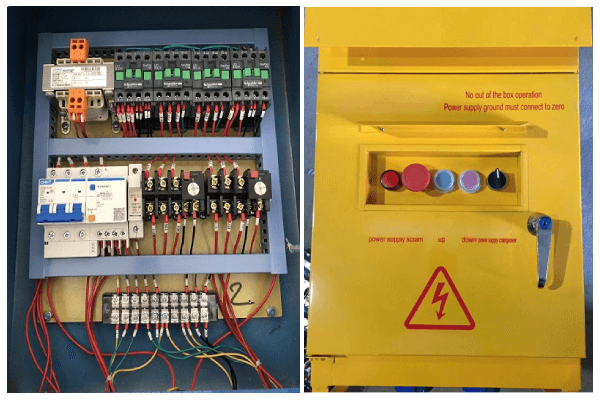

Electric Control Box
Power is transmitted to the motor via general contactor KM1, motor control contactor KM3 and KM,4, thermal replay FR1 and FR2, and connector Q3 and Q4. Once there is an abnormal situation, press the emergency stop button on the electric control panel so that the general contactor loses power, the motor powers off, and the hoist stop working to ensure safety.
The thermal relay can power off automatically when the motor is overloaded. Two motors can work at the same time when the switch is turned to the middle position. Single motor works when the switch is turned to one side.

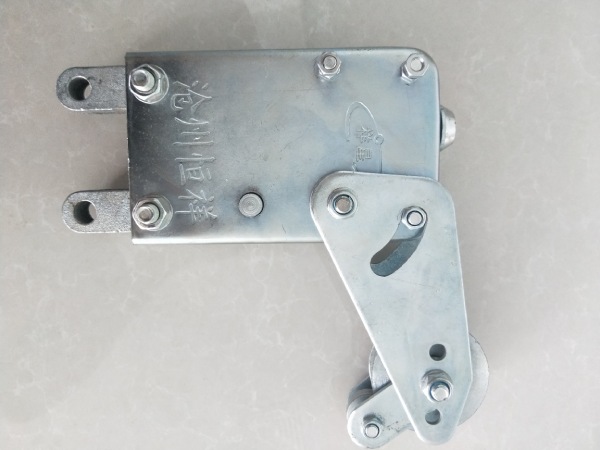

Safety Lock
There are two safety locks for each swing stage scaffold. The safety locks are installed separately on the safety lock bracket which is above the hoist mounting frame.
This equipment adopts the anti-tilting type of safety lock. When the work platform tilts or the working steel rope breaks, the safety lock can lock the steel wire rope automatically to stop the suspended platform from falling down.

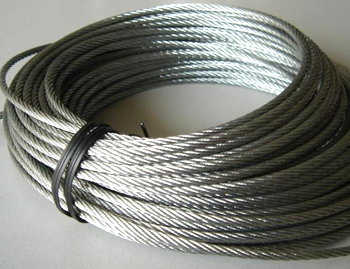

Steel Wire Rope
Steel wire rope and safety rope are the main components that bear the suspended platform. So, it is strictly regulated to select steel rope. The work steel rope is zinc-plated with features of high strength and good rust resistance. To prevent the steel rope gets loosened and inserting the rope into the hoist and safety lock easily, its ends have been welded to a bullet shape.
ZLP800 suspended scaffolding specifications
| MODEL NUMBER | ZLP800 |
| Rated Capacity(kg) | 800 |
| Lifting Speed(m/min) | 8-10 |
| Rated Power(KW) | 1.8×2 |
| Hoist Model | LTD80 |
| Safety Lock Model | LSA30/LSA20 |
| Dimension of platform: L x W x H(mm) | 7500x690x1180 |
| Suspension mechanism weight(kg) | 250 |
| Counterweight(kg) | 1000 |
| Steel Suspension Platform weight(kg) | 600 |
| Aluminum Suspension Platform weight(kg) | 440 |
Application of suspended scaffold system
The adjustable suspended scaffold system is mainly used to decorate, maintain and clean high buildings facades and exterior construction, such as cement coating, veneering, painting, installation of the glass curtain walls, as well as cleaning and maintenance.
This system also can be applied to the operating of big vessels and bridges, dams, etc. ZLP800 suspended platform cradle is a widely used model.
Advantages of the suspended scaffold platform
- The length of the work platform can be adjusted by 1m-30m.
- The working height can be adjusted to customers’ needs.
- The voltage meets different countries standards
- Materials 3 Types : Aluminum alloy, steel(painting, hot dipping zinc or galvanized)
- High quality, competitive price.
- High Efficiency, saving labor, costs, and time than traditional scaffolding.
- Easy to assemble and disassemble.
- Simple operation, easy to shift, convenient, and practical.
- ISO 9001:2000, CE and EAC certification.
